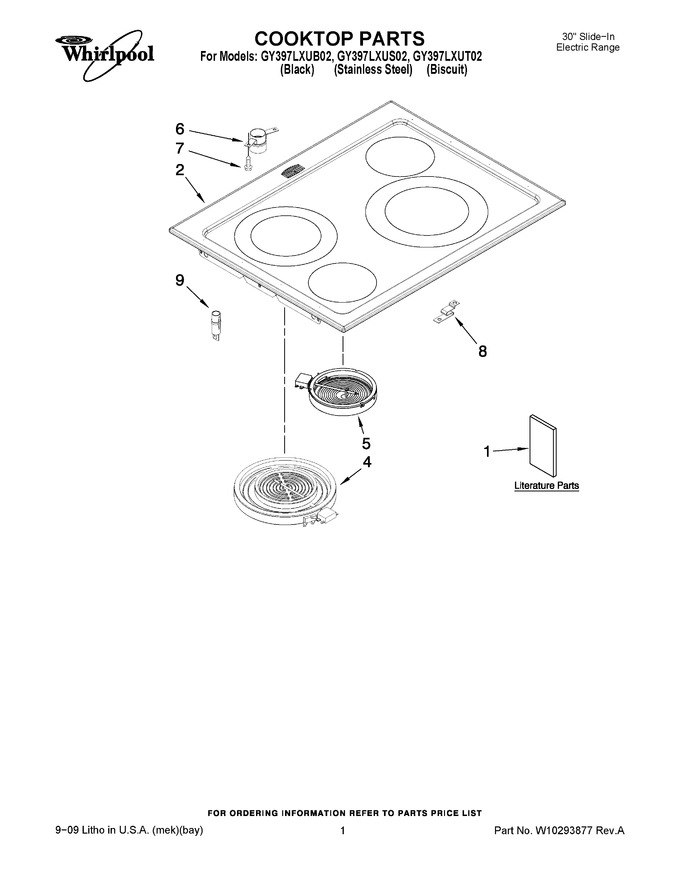

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8113P680-60 | Use & Care Guide |
|
- | |||||
| 1 | 8101P750-60 | Installation Instructions |
|
- | |||||
| 2 | W10170217 | Cooktop-black/ss Mdl |
|
- | |||||
| 2 | W10170216 | Cooktop-biscuit |
|
- | |||||
| 4 | W10823692 | Element (lr, Rf) (Replaces: 7406P403-60) |
|
Immediately | $ 227.59 | ||||
| 5 | W10823711 | Element (lf,rr) (Replaces: 7406P365-60) |
|
Immediately | $ 204.39 | ||||
| 6 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 8 | 8004P093-60 | Support,element |
|
$ 10.61 | |||||
| 9 | 7407P193-60 | Light, Indicator |
|
$ 77.76 |
