View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

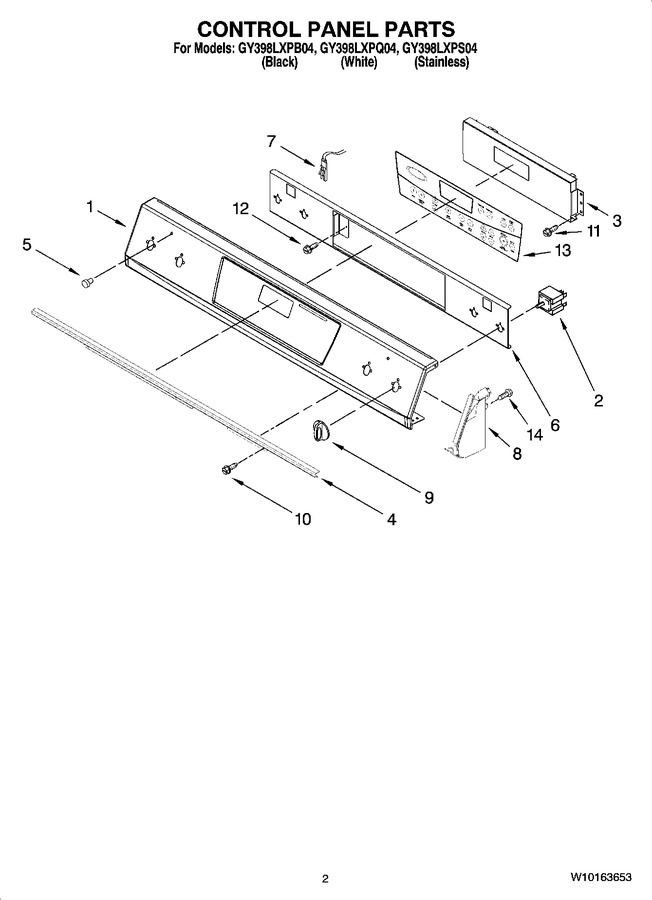

02 - Control Panel Parts
03 - Oven Parts
04 - Door Parts
05 - Drawer Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10036010 | Control Panel (black) |
|
$ 159.00 | |||||
| 1 | W10036000 | Control Panel (white) |
|
$ 128.42 | |||||
| 1 | W10035980 | Control Panel (stainless) |
|
$ 129.27 | |||||
| 2 | WP9750638 | Switch, Infinite (lr, Rf) (Replaces: 9750638) |
|
Immediately | $ 113.89 | ||||
| 2 | WP9750641 | Switch, Infinite (lf) (Replaces: 9750641) |
|
Immediately | $ 103.02 | ||||
| 2 | WP9750639 | Switch, Infinite (rr) (Replaces: 9750639) |
|
Immediately | $ 152.66 | ||||
| 3 | 9757475 | Control, Migration |
|
$ 291.09 | |||||
| 4 | 9757119 | Bracket, Console |
|
- | |||||
| 5 | WP3196068 | Lens, Indictor (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 6 | W10036100 | Bracket, Oven Control |
|
$ 42.77 | |||||
| 7 | WP8523265 | Housing, Indicator Light (2) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 8 | 9756614WH | Endcap Left (white) |
|
- | |||||
| 8 | 9756611BL | Endcap Right (black) |
|
$ 25.95 | |||||
| 8 | 9756611WH | Endcap Right (white) |
|
- | |||||
| 8 | 9756614BL | Endcap Left (black) |
|
$ 25.68 | |||||
| 9 | 9756659WH | Knob (white) |
|
$ 20.15 | |||||
| 9 | 9756659BL | Knob (black) |
|
$ 19.76 | |||||
| 10 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 11 | 9780271 | Screw |
|
- | |||||
| 12 | 3400855 | Screw |
|
- | |||||
| 13 | W10078540 | Membrane, Switch |
|
$ 177.42 | |||||
| 14 | 3196172 | Screw |
|
Immediately | $ 13.47 |
