Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8113P680-60 Use & Care Guide Appelez-nous -
1 8101P750-60 Installation Instructions Appelez-nous -
2 W10170220 Cooktop (stainless) Special Order $ 728.55

2 W10170219 Cooktop (black) Appelez-nous -
2 W10170218 Cooktop (white) Special Order $ 709.01

4 W10823692 Element (lr)   (Replaces: 7406P403-60) In-Stock Immediately $ 227.59

5 W10823711 Element (lf,rr)   (Replaces: 7406P365-60) In-Stock Immediately $ 204.39

6 W10233479 Tube, Vent Upper Special Order $ 74.82

7 WP7101P498-60 Screw   (Replaces: 7101P498-60) Special Order $ 7.49

8 8004P093-60 Support,element Special Order $ 10.61

9 7407P193-60 Light, Indicator Special Order $ 77.76

10 W10823713 Element (rf)   (Replaces: 7406P368-60) In-Stock Immediately $ 367.12


    View Diagram in Separate Window     Print Icon   Print Part List

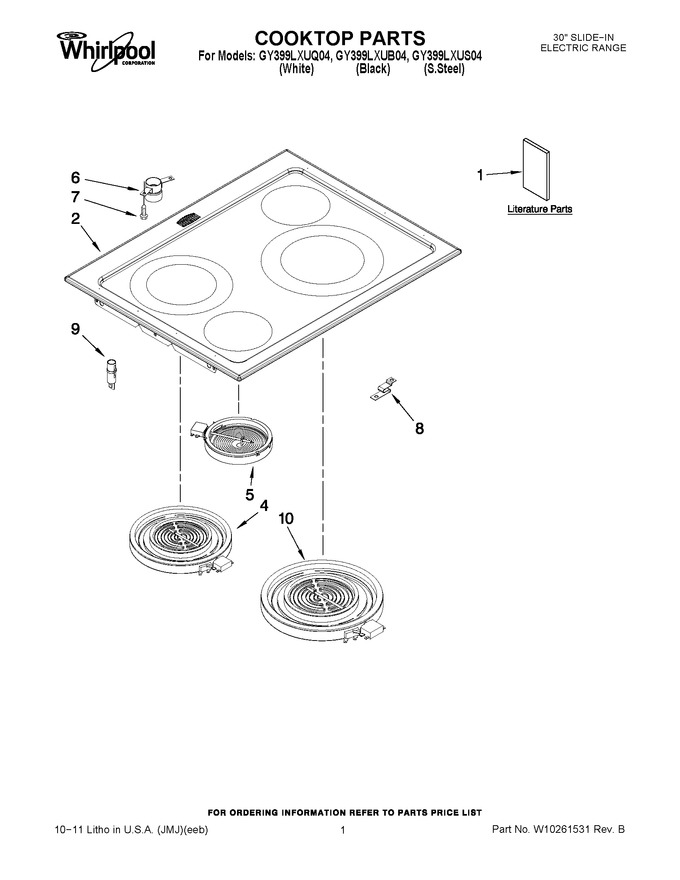

Diagram for GY399LXUB04
