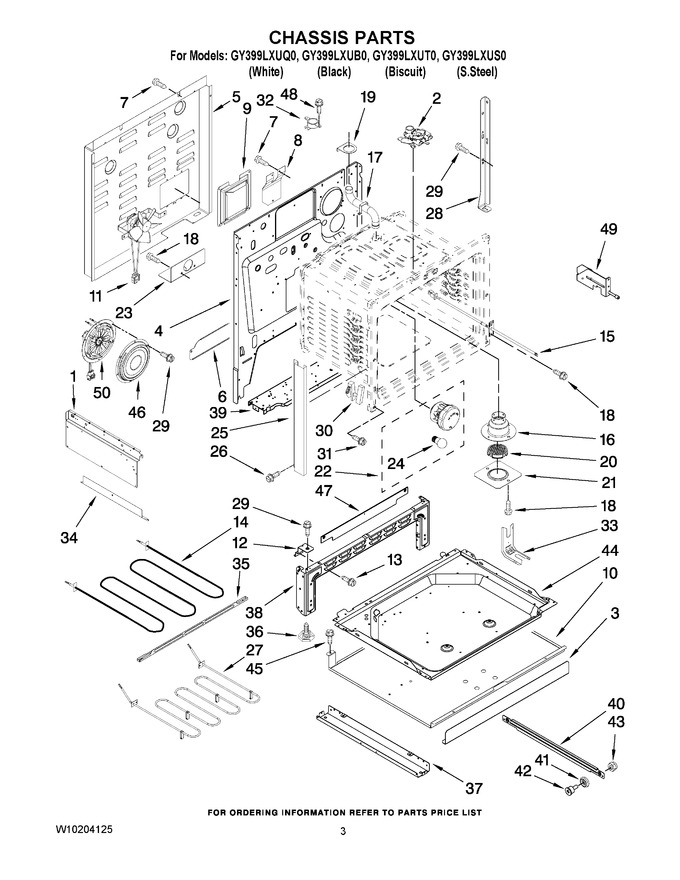

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010821		Panel, Shield (left)		Appelez-nous	-
1	74010822		Panel, Shield (right)		Appelez-nous	-
2	74010819		Latch Assembly				$ 360.32
3	74010807		Cover, Front		Appelez-nous	-
4	74011465		Main Back		Appelez-nous	-
5	W10203736		Cover, Main Wire				$ 92.37
6	74010815		Extension, Back		Appelez-nous	-
7	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.82
8	74006364		Insulator, Cord		Appelez-nous	-
9	3804F300-51		Retainer, Insul.   (Replaces: 74010814)				$ 66.09
10	W10177095		Shield, Warmer		Appelez-nous	-
11	WPW10586440		Fan, Cooling   (Replaces: 74010823)				$ 318.60
12	74010812		Support,oven Btm		Appelez-nous	-
13	WP74003976		Screw   (Replaces: 7101P124-60)				$ 7.19
14	WP7406P218-60		Element, Broil   (Replaces: 74003040)			Immediately	$ 169.20
15	12001656		Sensor, Oven   (Replaces: 74004943)			Immediately	$ 43.94
16	W10165722		Tube, Vent Lower				$ 66.44
17	74010816		Tube, Vent Upper		Appelez-nous	-
18	WP90767		Screw   (Replaces: W10116760)			Immediately	$ 7.82
19	74010817		Holder, Vent Tube		Appelez-nous	-
20	74008597		Smoke Eliminator		Appelez-nous	-
21	74010809		Plate, Smoke Elm.		Appelez-nous	-
22	WP7407P182-60		Light Assembly   (Replaces: 74010885)			Immediately	$ 73.44
23	W10190166		Bracket,pwr Supply   (Replaces: 74004180)				$ 9.24
24	8009		Bulb, Oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
25	74010831		Trim, Side (black (2))		Appelez-nous	-
25	74010832		Trim, Side (white (2))		Appelez-nous	-
26	WP7101P434-60		Screw   (Replaces: 71001394)				$ 6.95
27	WP7406P411-60		Element, Bake   (Replaces: 74010811)			Immediately	$ 337.68
28	74010884		Support, Oven Rear		Appelez-nous	-
29	WP7101P434-60		Screw   (Replaces: 71001394)				$ 6.95
30	74011142		Hinge (2)			Immediately	$ 120.24
31	WP4159193		Screw, Hinge (4)   (Replaces: 4159193)				$ 4.77
32	WP7450P034-60		Switch, Hi-limit   (Replaces: 74010818)				$ 217.58
33	WP3801F656-51		Bracket,anti-tip   (Replaces: 74005564)			Immediately	$ 5.21
34	74010820		Extention, Shield		Appelez-nous	-
35	74003386		Support, Element		Appelez-nous	-
36	WP74010805		Leg, Leveling   (Replaces: 74010805)				$ 7.19
37	4020W035-80		Pedestal, Bottom   (Replaces: 74010899)				$ 112.82
38	74010882		Pedestal, Front		Appelez-nous	-
39	74007129		Support				$ 9.81
40	74003565		Runner, Drawer (2)		Appelez-nous	-
41	WP74004078		Roller, Drawer (2)   (Replaces: 74004078)			Immediately	$ 11.89
42	74005231		Shaft, Roller (2)				$ 9.23
43	74005230		Nut, Lock (2)				$ 12.02
44	74006522		Retainer, Bottom		Appelez-nous	-
45	WP90767		Screw   (Replaces: W10116760)			Immediately	$ 7.82
46	74008315		Cover,conv.fan		Appelez-nous	-
47	W10159823		Trim, Front				$ 72.59
48	WP90767		Screw   (Replaces: W10116760)			Immediately	$ 7.82
49	WP7450P108-60		Switch, Light   (Replaces: W10171550)			Immediately	$ 153.60
50	74011094		Fan, Convect		Appelez-nous	-
NI	74010987		Insulation, Wrap				$ 60.00
NI	W10165725		Insulation, Back				$ 74.98
NI	74010986		Insulation, Oven Bottom		Appelez-nous	-
