SELECT A DIAGRAM

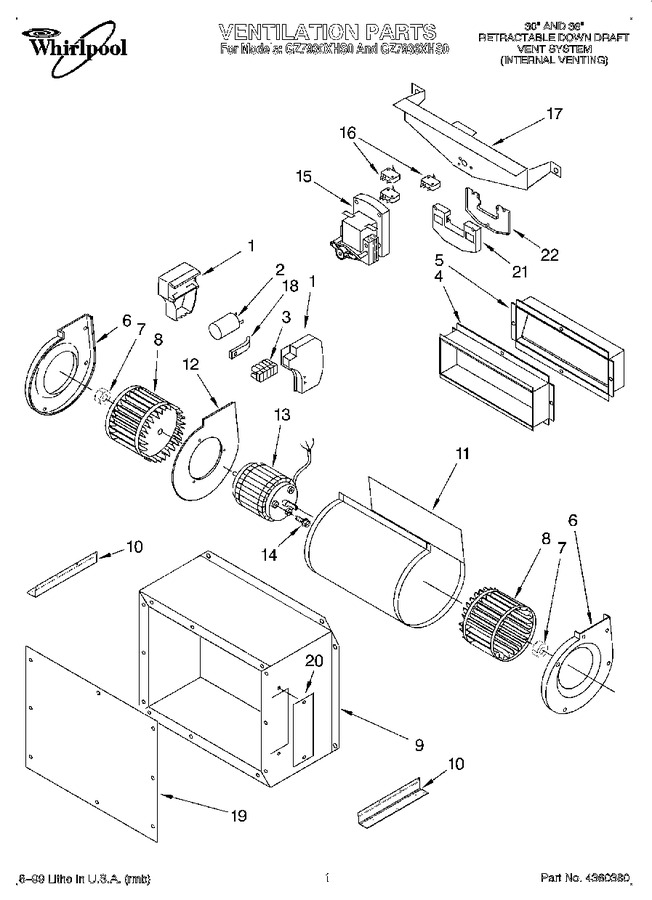

01 - Ventilation


02 - Housing And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4360060		Cover, Capacitor (l.h.)		Appelez-nous	-
1	4360056		Cover, Capacitor (r.h.)		Appelez-nous	-
2	4360175		Capacitor		Appelez-nous	-
3	4360176		Terminal		Appelez-nous	-
4	4360177		Guide, Exhaust		Appelez-nous	-
5	4360178		Damper		Appelez-nous	-
6	4360188		Cover, Blower (l.h.)		Appelez-nous	-
6	4360179		Cover, Blower (r.h.)		Appelez-nous	-
7	4360180		Nut		Appelez-nous	-
8	4360187		Blower Wheel (l.h.)		Appelez-nous	-
8	4360181		Blower Wheel (r.h.)		Appelez-nous	-
9	4360182		Box, Blower		Appelez-nous	-
10	4360183		Support, Blower (2)		Appelez-nous	-
11	4360184		Housing, Blower		Appelez-nous	-
12	4360185		Plate, Motor		Appelez-nous	-
13	4360212		Motor		Appelez-nous	-
14	4360114		Screw		Appelez-nous	-
15	4360154		Motor, Gear		Appelez-nous	-
16	WPW10240604		Micro Switch (3)   (Replaces: 4360362)				$ 260.25
17	4360155		Bracket, Motor Gear		Appelez-nous	-
18	4360059		Bracket, Capacitor		Appelez-nous	-
19	4360189		Cover, Blower Box		Appelez-nous	-
20	4360190		Cover, Exhaust Outlet		Appelez-nous	-
21	4360229		Box, Microswitch		Appelez-nous	-
22	4360230		Cover, Box		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
