Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4336234 Grate, Burner (4) Appelez-nous -
2 4336770 Pan, Aeration Special Order $ 20.74

3 4338425 Rivet Appelez-nous -
4 4337624 Bracket, Mounting Appelez-nous -
5 4333234 Hinge (right) Appelez-nous -
5 4333235 Hinge (left) Appelez-nous -
6 WP999367 Screw No. 10-32x3/4   (Replaces: 4333332) Special Order $ 7.70

7 4338088 Rod, Support Appelez-nous -
8 4338182 Screw Appelez-nous -
9 WP681414 Screw, No.10-16 X 7/16   (Replaces: 4335248) In-Stock Immediately $ 7.62

10 4336961 End Cap (left) Appelez-nous -
10 4336960 End Cap (right) Appelez-nous -
11 4336962 Bracket, Manifold (right) Appelez-nous -
11 4336963 Bracket, Manifold (left) Appelez-nous -
13 4337623 Screw Appelez-nous -
14 4337120 Knob, Gas Valve (4) Appelez-nous -
16 4337486 Panel, Manifold Appelez-nous -
17 4337005 Bottom, Burner Box Appelez-nous -
18 4336779 Cooktop (almond) Appelez-nous -
18 4336778 Cooktop (white) Appelez-nous -
19 4337162 Wire Cover Appelez-nous -
20 4337625 Cleat Appelez-nous -
21 4337571 Spacer, Tubing Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

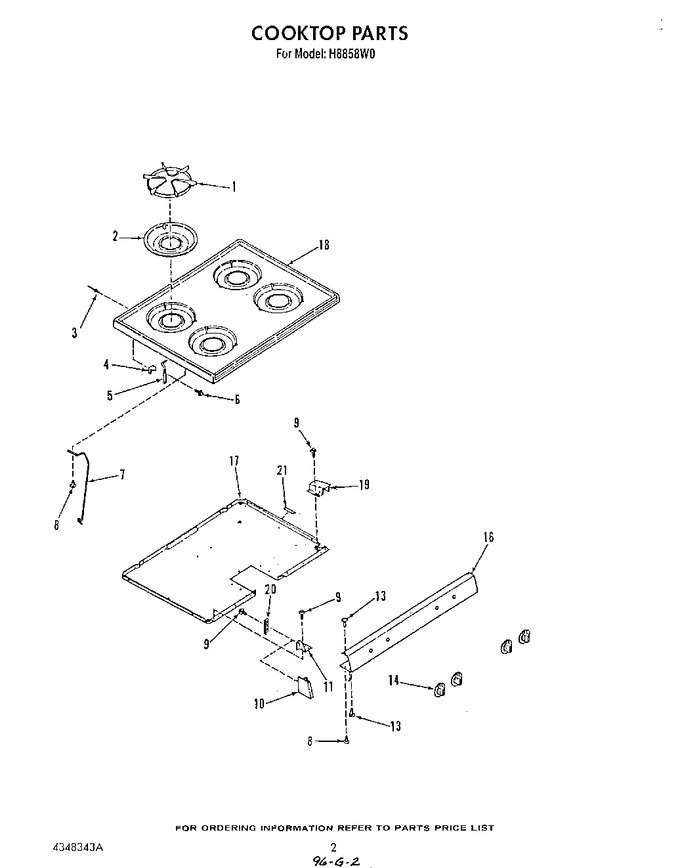

Diagram for H8858L0
