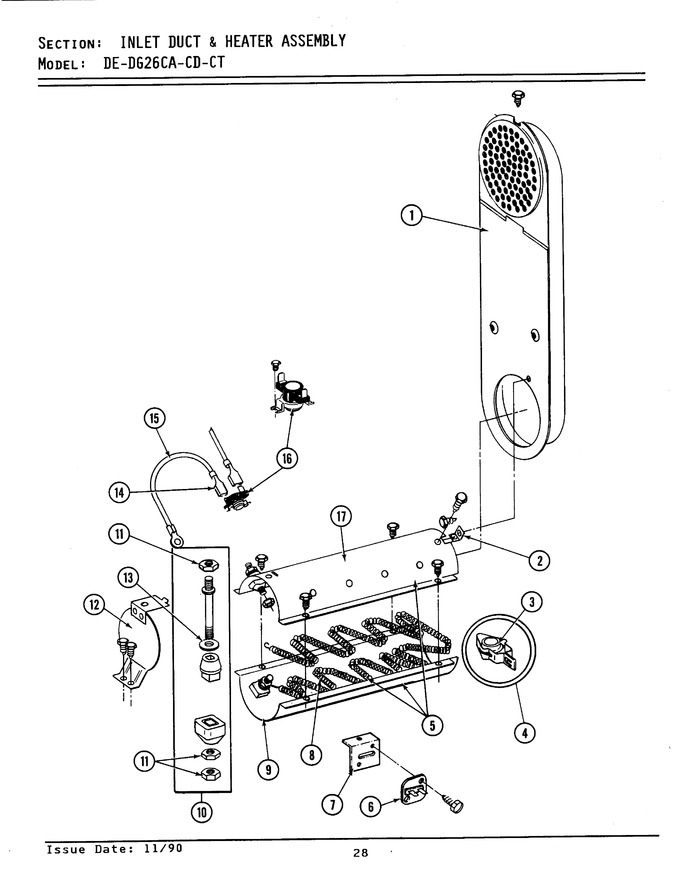

06 - Inlet Duct & Heater Assembly


07 - Motor, Blower & Base Frame


08 - Thermostats


09 - Installation Accessories


10 - 50hz Conversion List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.82
001	NLA		Inlet Duct Assy.		Appelez-nous	-
002	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.82
002	Y312890		Retainer, Heater Chamber		Appelez-nous	-
003	Y313270		Insulator, Heater Element				$ 5.85
004	WPY303881		Clip & Insulator Assy.   (Replaces: Y303881)			Immediately	$ 21.99
005	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.82
005	307470		Heater Assy 240v		Appelez-nous	-
005	307471		Heater Assy 208v		Appelez-nous	-
006	WP307473		Fuse, Thermal   (Replaces: 307473)			Immediately	$ 61.35
006	NLA		Screw		Appelez-nous	-
007	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.82
007	315046		Mounting Bracket		Appelez-nous	-
008	W10116793		Heater Element Kit (208v)   (Replaces: Y304837)				$ 212.18
008	Y313537		Heater Element 240 Volt		Appelez-nous	-
009	Y313576		Heater Chamber, Bottom		Appelez-nous	-
010	Y304596		Terminal Insulator Assy.			Immediately	$ 25.52
011	WP112432		Nut, Terminal Block   (Replaces: 311484)				$ 7.96
012	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.82
012	304124		Heater Shield		Appelez-nous	-
013	WP311093		Washer, 7/32 Inch   (Replaces: 311093)				$ 8.05
014	210745		Wire Terminal		Appelez-nous	-
015	WPY304693		Jumper Wire   (Replaces: Y304693)			Immediately	$ 7.19
016	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.82
016	WP303396		Thermostat, Hi-limit   (Replaces: 303396)			Immediately	$ 48.91
016	WP303896		Hi-limit Thermostat (can)   (Replaces: 303896)			Immediately	$ 73.47
017	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.82
017	Y313575		Heater Chamber, Top		Appelez-nous	-
