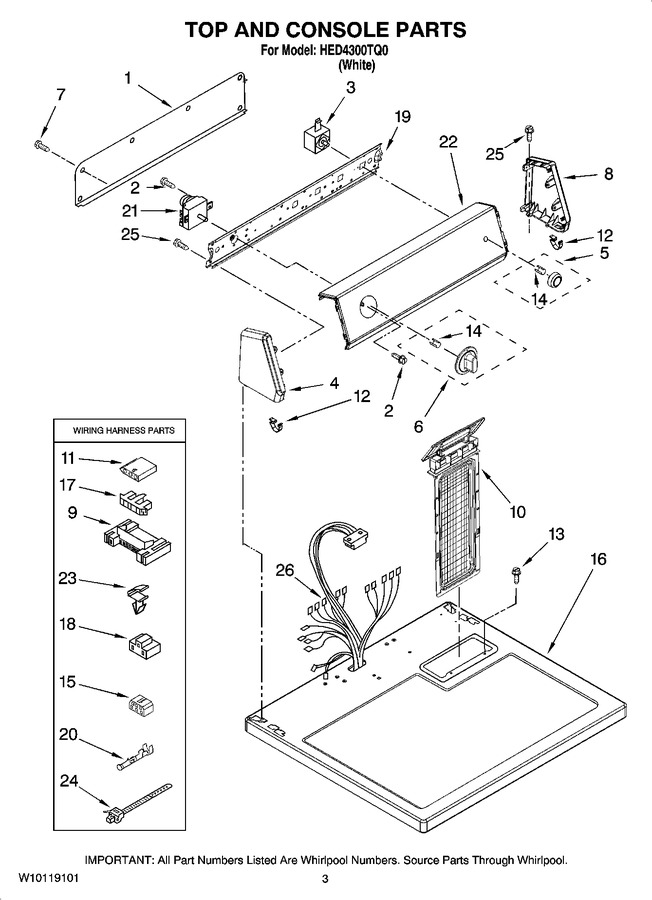

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
3	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
4	8579674		Cap, End (l.h.)		Appelez-nous	-
5	W10110065		Knob, Push-to-start				$ 87.57
6	W10110064		Timer-knob Assembly				$ 26.97
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
8	8579673		Cap, End (r.h.)		Appelez-nous	-
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	W10874409		Screen, Lint   (Replaces: 8558467)			Immediately	$ 67.01
11	3936144		Connector				$ 21.22
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	3347243		Connector 6-circuit		Appelez-nous	-
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
17	3397269		Connector, Timer				$ 25.55
18	3401144		Connector, (pts Relay)				$ 12.81
19	8579678		Bracket, Control		Appelez-nous	-
20	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
21	WP8299781		Timer   (Replaces: 8299781)			Immediately	$ 380.55
22	W10086683		Panel, Control		Appelez-nous	-
23	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
24	3391249		Tie, Cable		Appelez-nous	-
25	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
26	WPW10450292		Harness, Wiring   (Replaces: 8576500)				$ 279.32
