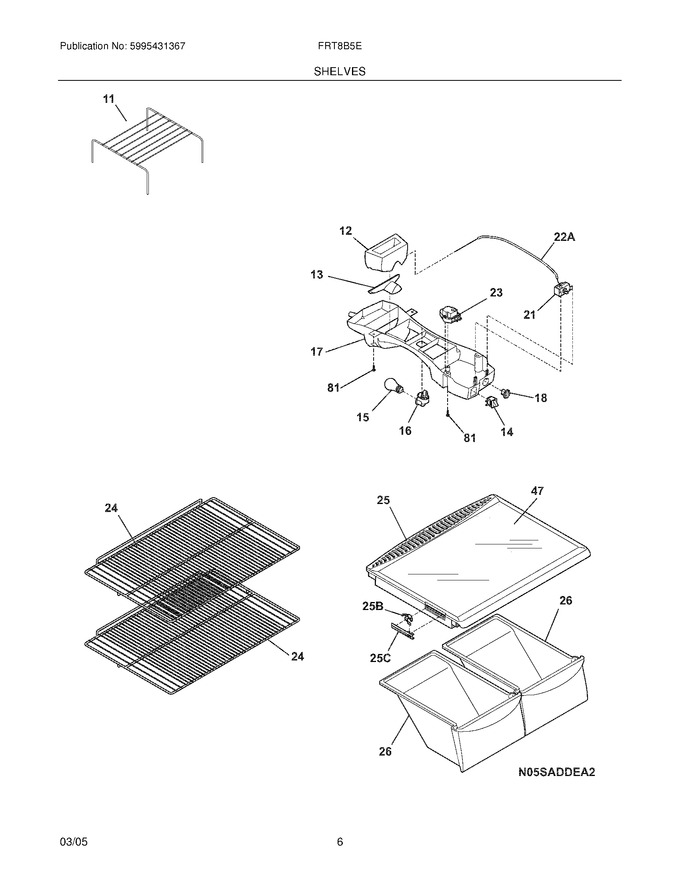

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5303282284		Shelf-freezer,``table Type``			Immediately	$ 97.83
12	241542001		Diffuser,air ,top			Immediately	$ 82.69
13	240362601		Diffuser-air,bottom			Immediately	$ 46.46
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
16	241559801		Socket-light				$ 80.75
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 80.34
24	240360908		Shelf,sliding ,wire   (Replaces: 240360905)				$ 105.53
25	240364793		Cover-crisper Pan,with Beam ,humid Cont   (Replaces: 240364713)			Immediately	$ 121.04
26	240337103		Pan-crisper,clear ,(2) ,no Graphics   (Replaces: 240337107)			Immediately	$ 164.83
47	240350608		Insert-pan Cover,23.82`` X 15.50`` ,glass			Immediately	$ 50.55
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 15.75
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 0.438   (Replaces: 215005100)				$ 16.54
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 10.11
25B	5304492617		Control-humidity   (Replaces: 240361201)			Immediately	$ 9.65
25C	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 9.65
F14	241554901		Switch-light/lamp				$ 78.75
F23	215846602		Timer-defrost   (Replaces: 241621501)			Immediately	$ 31.33
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2)   (Replaces: 5303001259)				$ 18.90
NI	240388701		Wiring Harness,control Box			Immediately	$ 88.99
NI	240568606		Seal   (Replaces: 240568607)				$ 14.18
NI	5303299664		Spacer-shelf				$ 26.78
