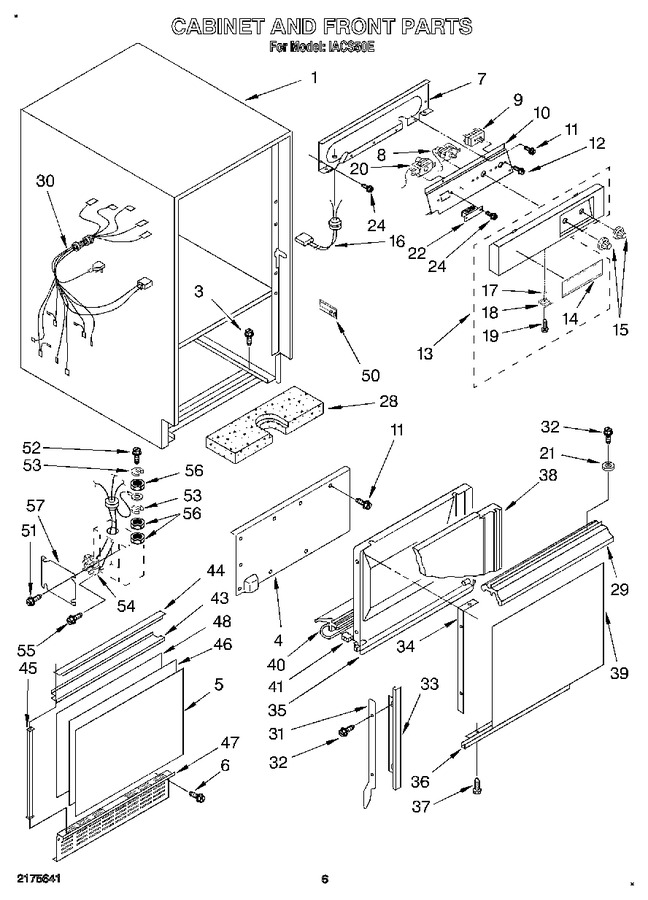

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	759117		Cabinet		Appelez-nous	-
3	680811		Screw, No.10-32 X 3/8		Appelez-nous	-
4	758652		Support, Cabinet Front		Appelez-nous	-
5	2165586		Panel, Grill (outer)		Appelez-nous	-
6	WP90767		Screw, No.8-32 X 3/8 (2)   (Replaces: 681167)			Immediately	$ 8.25
7	2165530		Panel, Rear Escutcheon		Appelez-nous	-
8	2157321		Thermostat, Evaporator		Appelez-nous	-
9	2172893		Switch, Rotary		Appelez-nous	-
10	756341		Panel, Control		Appelez-nous	-
11	WP488729		Screw, No.8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
12	WP486579		Screw, No.8-32 X 1/4   (Replaces: 595005)				$ 7.89
13	2165581		Escutcheon, Control		Appelez-nous	-
14	2165582		Nameplate		Appelez-nous	-
15	756881		Knob, Control (2)		Appelez-nous	-
16	757464		Harness, Wiring (cutter Grid)		Appelez-nous	-
17	681245		Washer, Latch		Appelez-nous	-
18	759007		Latch, Door		Appelez-nous	-
19	680964		Screw 8-32 X .375		Appelez-nous	-
20	2165478		Thermostat, Ice Bin		Appelez-nous	-
21	681613		Washer (2)		Appelez-nous	-
22	758309		Transformer		Appelez-nous	-
24	681036		Screw, 8-32 X 3/8		Appelez-nous	-
28	756891		Insul. Botton Foam		Appelez-nous	-
29	2165584		Handle, Door		Appelez-nous	-
30	758406		Harness, Cabinet		Appelez-nous	-
31	593185		Rail, Door (left Side)		Appelez-nous	-
31	593184		Rail, Door (right Side)		Appelez-nous	-
32	681459		Screw, No.8-32 1/2 (6)		Appelez-nous	-
33	755676		Trim, Door (left Side)		Appelez-nous	-
33	755675		Trim, Door (right Side)		Appelez-nous	-
34	593104		Strip, Tapping (2)		Appelez-nous	-
35	758655		Liner, Door		Appelez-nous	-
36	755677		Trim, Door		Appelez-nous	-
37	681196		Screw, No.8-32 X 1/2		Appelez-nous	-
38	758754		Insulation, Door		Appelez-nous	-
39	755340		Panel, Door (outer)		Appelez-nous	-
40	758169		Gasket, Door		Appelez-nous	-
41	593192		Plug, Hinge		Appelez-nous	-
43	758718		Support Panel		Appelez-nous	-
44	758716		Trim, Top & Bottom		Appelez-nous	-
45	758713		Trim Side (2)		Appelez-nous	-
46	758770		Filler, Panel		Appelez-nous	-
47	758769		Grille, Front		Appelez-nous	-
48	758771		Panel, Inner		Appelez-nous	-
50	758844		Retainer, Wire (2)		Appelez-nous	-
51	486214		Screw		Appelez-nous	-
52	681333		Screw, 1/4-20 X 1-1/4		Appelez-nous	-
53	668347		Lockwasher (3)		Appelez-nous	-
54	938329		Terminal, Connector		Appelez-nous	-
55	WP681249		Screw, 8-32 X 3/4   (Replaces: 681249)			Immediately	$ 8.25
56	680637		Nut, 1/4 Hex (3)		Appelez-nous	-
57	573468		Cover, Box		Appelez-nous	-
