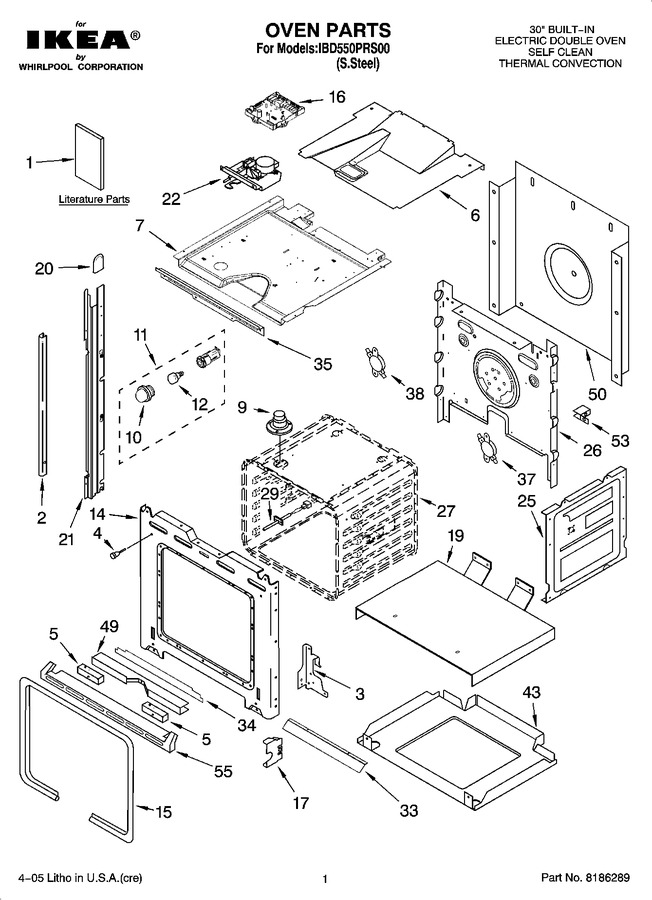

SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8301928		Instructions Microwave Trim Kit		Appelez-nous	-
1	8303106		Installation/ Undercounter		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	8303102		Installation Instructions		Appelez-nous	-
1	8303107		Use & Care Guide (oven)		Appelez-nous	-
1	8303104		Tech Sheet (oven)		Appelez-nous	-
2	WP694091		Trim, Side (screw)   (Replaces: 694091)				$ 7.55
2	4452081		Trim, Side (s.steel (r.hand))		Appelez-nous	-
2	WP4449809		Trim, Side (screw)   (Replaces: 4449809)			Immediately	$ 7.55
2	4452082		Trim, Side (s.steel (l.hand))		Appelez-nous	-
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	4448520		Bumper, Door				$ 22.25
5	4452490		Spacer, Foam				$ 34.83
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
6	8302349		Divider, Vent				$ 142.26
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455865		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	9759060		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	WP8304383		Control, Taurus2 (lower)   (Replaces: 8303643)				$ 436.52
16	8303642		Control, Taurus2 (upper)		Appelez-nous	-
17	4452152		Bracket, Mounting				$ 35.18
19	4451478		Support, Insulation				$ 54.10
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	814374		Rail, Side (left Side)   (Replaces: 4450582)				$ 238.23
21	814373		Rail, Side (right Side)   (Replaces: 4450581)				$ 237.85
22	WPW10195934		Latch, Motorized   (Replaces: 9759481)			Immediately	$ 288.66
22	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
33	4452496		Deflector, Vent		Appelez-nous	-
34	4452337		Insulation Bottom Vent		Appelez-nous	-
35	4452267		Vent, Center				$ 67.43
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 9759243)			Immediately	$ 55.44
38	WP9759242		Thermostat, Spst Over Temp 130c   (Replaces: 9759242)			Immediately	$ 85.57
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Support, Bracket		Appelez-nous	-
55	4455147		Trim, Bottom (s.steel)				$ 96.52
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
55	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
55	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 8.18
55	4450365		Insulation, Back				$ 70.95
