SELECT A DIAGRAM

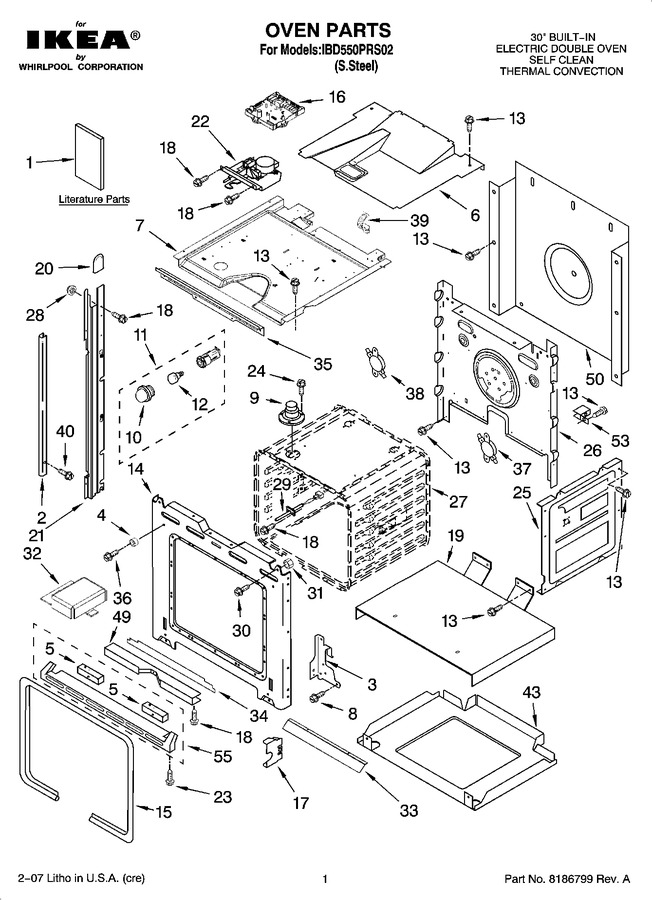

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303102		Instruct, Install		Appelez-nous	-
1	W10075750		Installation Instructions		Appelez-nous	-
1	8304379		Owners Manual (sgl/dbl Oven)		Appelez-nous	-
1	8303104		Tech Sheet (oven)		Appelez-nous	-
2	4452082		Trim, Side (s.steel (l.hand))		Appelez-nous	-
2	4452081		Trim, Side (s.steel (r.hand))		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 119.41
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 115.36
4	W10105790		Bumper, Door (2)   (Replaces: 9760749)				$ 7.06
5	4452490		Spacer, Foam				$ 34.83
6	8302349		Divider, Vent				$ 142.26
7	8303099		Top Chassis				$ 70.97
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 116.63
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Oven Light Assy   (Replaces: W10009930)				$ 96.63
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
14	WPW10115831		Frame, Front   (Replaces: 9760756)				$ 335.13
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 69.75
16	WP8304383		Control, Taurus2 (lower)   (Replaces: 8304383)				$ 415.73
16	8304382		Control, Taurus2 (upper)				$ 355.97
17	4452152		Bracket, Mounting				$ 35.18
18	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	814373		Rail, Side (right Side)   (Replaces: 4450581)				$ 226.52
21	814374		Rail, Side (left Side)   (Replaces: 4450582)				$ 226.89
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 328.65
23	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 7.75
24	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.02
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 143.51
26	4452234		Back, Chassis		Appelez-nous	-
28	WP4448444		Grommet   (Replaces: 4448444)				$ 7.48
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
31	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
32	W11819303		Cover, Wire   (Replaces: 8285593)		Appelez-nous	-
33	9760677		Deflector, Vent				$ 155.46
34	4452337		Insulation Bottom Vent		Appelez-nous	-
35	4452267		Vent, Center				$ 67.43
36	WP4450038		Screw (2)   (Replaces: 4450038)				$ 7.60
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 9759243)			Immediately	$ 55.44
38	WP9759242		Thermostat, Spst Over Temp 130c   (Replaces: 9759242)			Immediately	$ 85.57
39	WP98997		Clip   (Replaces: 98997)				$ 11.09
40	WP694091		Screw   (Replaces: 694091)				$ 7.19
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.86
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 142.92
53	4449845		Support, Bracket		Appelez-nous	-
55	4450365		Insulation, Back				$ 70.95
55	4455147		Trim, Bottom (s.steel)				$ 96.52
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 118.90
