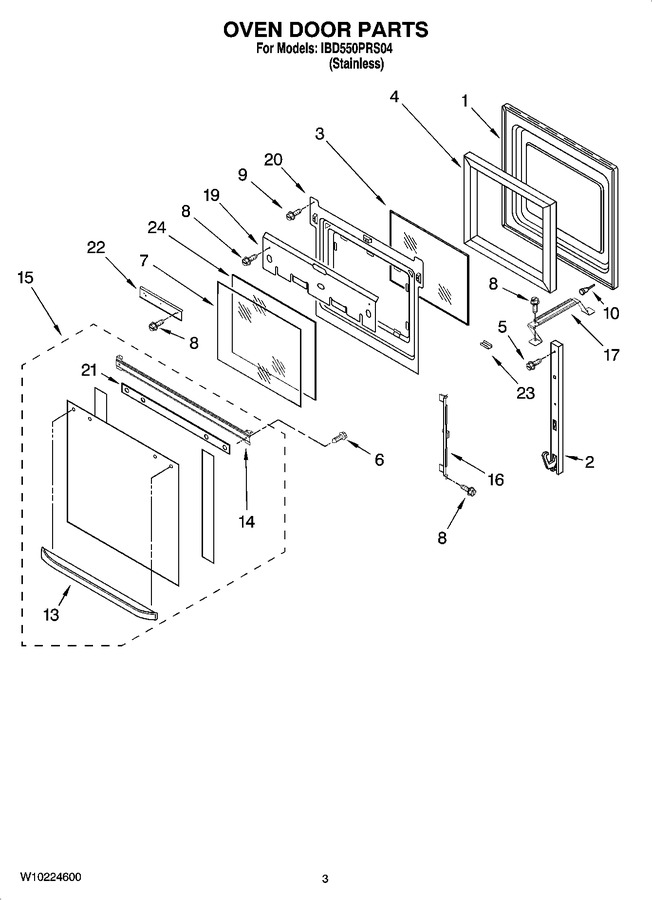

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 9759413)				$ 370.46
2	WP9760574		Hinge, Door (left)   (Replaces: 9760580)			Immediately	$ 67.07
2	WP9760579		Hinge, Door (right)   (Replaces: 9760579)			Immediately	$ 71.50
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
10	4448520		Bumper, Door (3)				$ 22.25
13	8303589		Door Handle				$ 50.37
14	8302795		Bracket, Handle		Appelez-nous	-
15	8304251		Assy, Door Glass (upper)		Appelez-nous	-
15	8304252		Assy, Door Glass (lower)				$ 290.07
16	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
17	9759230		Bracket (3rdglass)				$ 36.30
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 39.22
20	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
21	9759116		Seal, Door Top		Appelez-nous	-
22	4457114		Shield, Heat (btm)				$ 217.79
23	W10158497		Retainer, Clip				$ 5.65
24	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
