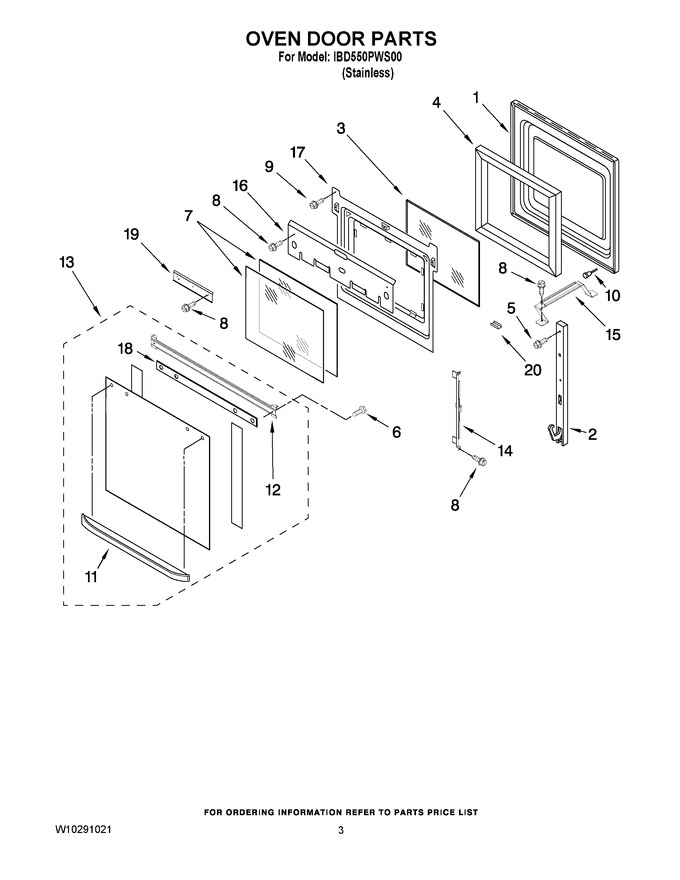

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner (2)   (Replaces: 9759413)				$ 370.46
2	WP9760579		Hinge, Door (right) (2)   (Replaces: 9760579)			Immediately	$ 71.50
2	WP9760574		Hinge, Door (left) (2)   (Replaces: 9760580)			Immediately	$ 67.07
3	WP4449259		Glass, Inner (2)   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door (2)   (Replaces: 4451722)				$ 189.77
5	WPW10292297		Screw W/washer   (Replaces: W10292297)			Immediately	$ 7.55
6	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
7	WP9759225		Glass, Inner (4)   (Replaces: 9759225)			Immediately	$ 194.20
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
10	4448520		Bumper, Door (6)				$ 22.25
11	8303589		Handle, Door (2)				$ 50.37
12	W10159515		Bracket, Door Handle (2)		Appelez-nous	-
13	8304252		Assy, Door Glass (lower)				$ 290.07
13	W10275817		Assy, Door Glass (upper)				$ 141.76
14	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
15	9759230		Bracket (3rdglass)				$ 36.30
16	4457104		Shield, Heat (top) (2)				$ 39.22
17	WP4457132		Retainer, Glass (2)   (Replaces: 4457132)				$ 320.99
18	9759116		Seal, Door Top (2)		Appelez-nous	-
19	4457114		Shield, Heat (bottom) (2)				$ 217.79
20	W10158497		Retainer, Clip (4)				$ 5.65
