01 - Oven Parts

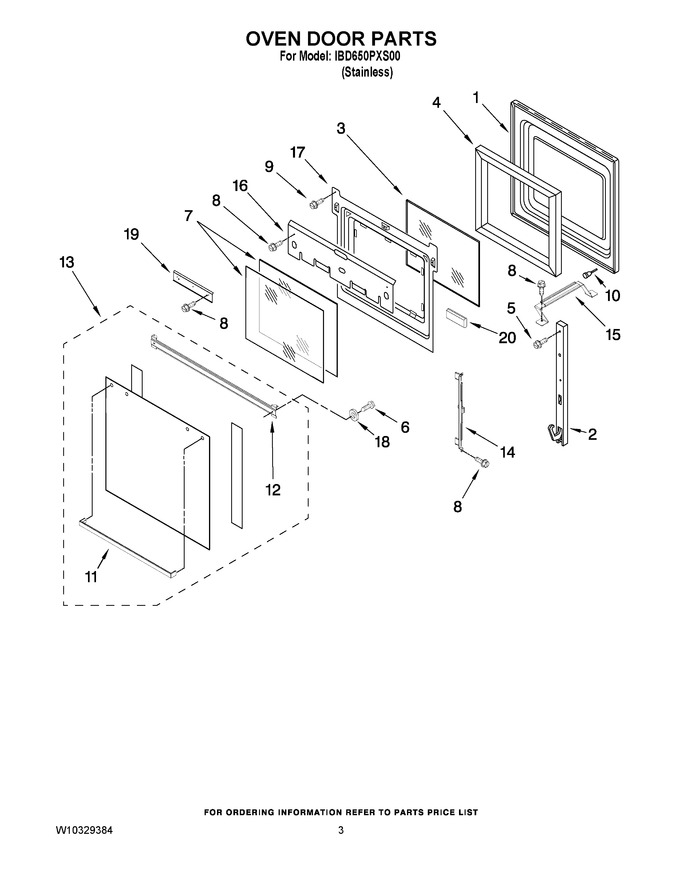

02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759413 | Door Panel (Replaces: 9759413) |
|
$ 370.46 | |||||
| 2 | WP9760578 | Hinge, Door (left) (Replaces: 9760578) |
|
Immediately | $ 115.46 | ||||
| 2 | WP9760577 | Hinge, Door (right) (Replaces: 9760577) |
|
Immediately | $ 116.54 | ||||
| 3 | WP4449259 | Glass, Inner (Replaces: 4449259) |
|
$ 213.34 | |||||
| 4 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 189.77 | |||||
| 5 | WPW10292297 | Screw W/washer (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 6 | WP74006515 | Screw (Replaces: 7101P544-60) |
|
$ 8.84 | |||||
| 7 | WP9759225 | Glass, Inner (Replaces: 9759225) |
|
Immediately | $ 194.20 | ||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 10 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 11 | W10308271 | Handle, Door |
|
$ 95.03 | |||||
| 12 | W10159515 | Bracket, Door Handle |
|
- | |||||
| 13 | W10308268 | Assy, Door Glass |
|
- | |||||
| 14 | WP9759229 | Bracket (2nd Glass) (Replaces: 9759229) |
|
$ 187.50 | |||||
| 15 | 9759230 | Bracket (3rdglass) |
|
$ 36.30 | |||||
| 16 | 4457104 | Shield, Heat (top) |
|
$ 39.22 | |||||
| 17 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 320.99 | |||||
| 18 | W10169568 | Washer |
|
- | |||||
| 19 | 4457114 | Shield, Heat-bottom |
|
$ 217.79 | |||||
| 20 | 9759635 | Spacer, Door Glass |
|
$ 36.09 |
