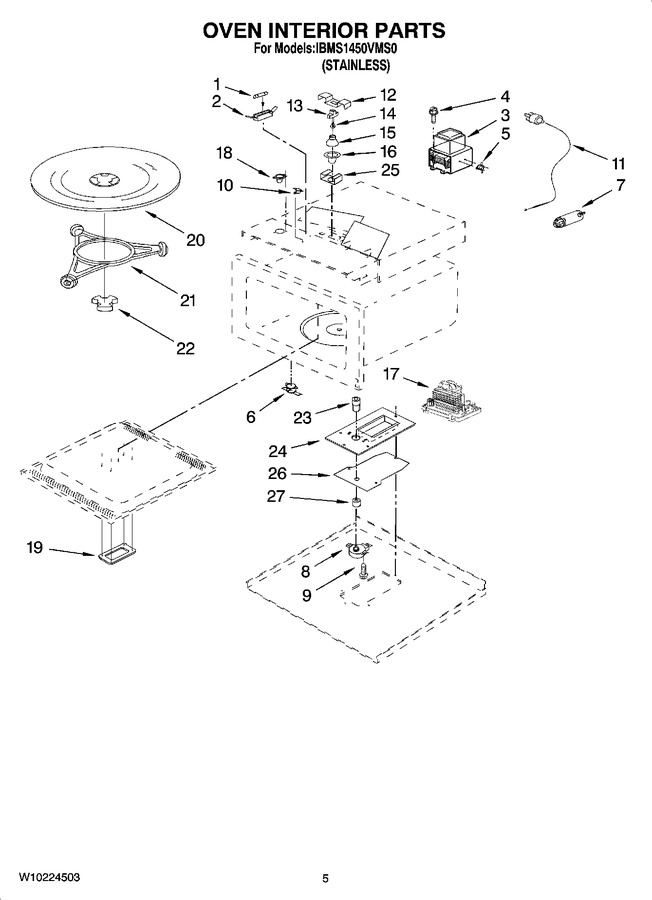

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4375321		Fuse   (Replaces: 4375321)			Immediately	$ 18.28
2	8205670		Fuse Holder				$ 78.15
3	8206079		Magnetron   (Replaces: W10217467)			Immediately	$ 333.10
4	8205651		Screw		Appelez-nous	-
5	8205652		Thermostat				$ 29.96
6	W11846983		Thermostat   (Replaces: W10141630)			Immediately	$ 18.90
7	WPW10120220		Mains Filter   (Replaces: W10120220)				$ 195.98
8	W10911403		Turntable Motor   (Replaces: W10120511)			Immediately	$ 117.53
9	461967825321		Screw   (Replaces: 4375202)				$ 12.13
10	W11676348		Thermostat, Cavity   (Replaces: 8205659)				$ 44.39
11	8205660		Power Cord		Appelez-nous	-
12	8205679		Spring, Lamp Holder		Appelez-nous	-
13	WPW10490593		Socket, Lamp   (Replaces: 8205658)				$ 77.82
14	WPW10440740		Lamp   (Replaces: 4375348)			Immediately	$ 38.73
15	423107022541		Reflector   (Replaces: 4375320)				$ 85.90
16	W11193483		Lens, Lamp   (Replaces: 4375318)			Immediately	$ 104.82
17	W10217711		Inverter   (Replaces: W10120229)			Immediately	$ 289.63
18	W10871220		Sensor, Humidity   (Replaces: 8205690)				$ 185.43
19	W10915651		Cover, Inlet   (Replaces: W10120230)			Immediately	$ 88.90
20	W11373838		Turntable, Glass   (Replaces: 8205676)			Immediately	$ 78.50
21	W11110134		Ring, Turntable   (Replaces: 8205538)			Immediately	$ 74.00
22	W11223840		Driver, Turntable   (Replaces: 8205539)				$ 27.93
23	W11126044		Shaft, Turntable   (Replaces: 8205682)				$ 30.23
24	461967008471		Holder, Motor   (Replaces: 8205681)				$ 85.90
25	W11440819		Clip. Spring   (Replaces: W10120231)				$ 23.00
26	W10120234		Cover, Motor				$ 43.07
27	4375252		Gasket, Shaft				$ 38.27
