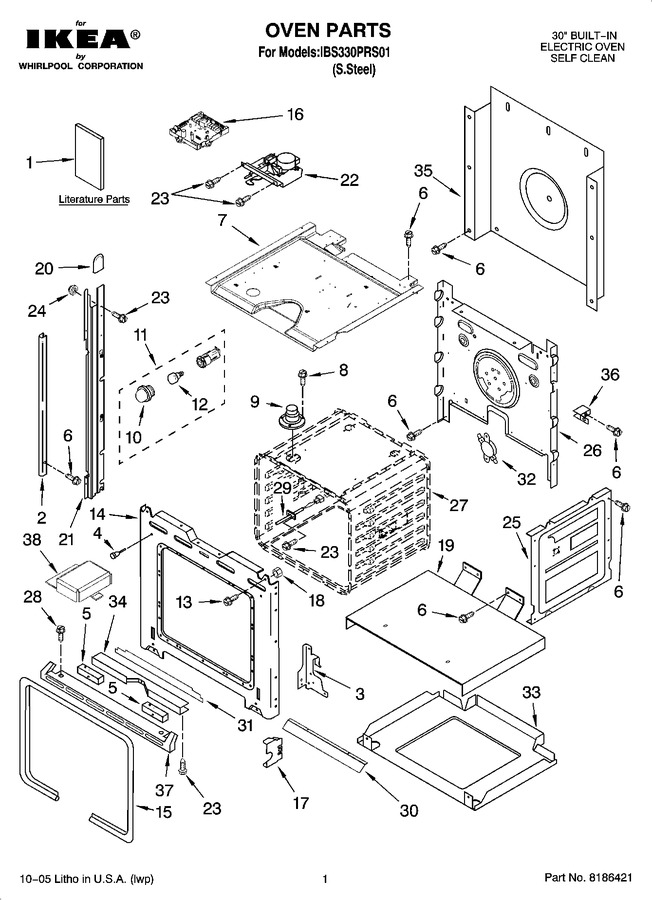

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303106		Installation/ Undercounter		Appelez-nous	-
1	8303103		Tech Sheet (oven)		Appelez-nous	-
1	8304083		Owners Manual (sgl/dbl Ovn Ikea)		Appelez-nous	-
1	8303102		Installation Instructions		Appelez-nous	-
2	W10144984		Trim, Side (left Hand)   (Replaces: 4452080)				$ 148.16
2	WPW10144983		Trim, Side (right Hand)   (Replaces: 4452079)				$ 164.76
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	4448520		Bumper, Door				$ 22.25
5	4452490		Spacer, Foam				$ 34.83
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	8303099		Top Chassis				$ 70.97
8	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	9759060		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	8303640		Control, Taurus2		Appelez-nous	-
17	4452152		Bracket, Mounting				$ 35.18
18	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 126.74
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 127.79
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
28	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	9760677		Deflector, Vent				$ 155.46
31	4452337		Insulation Bottom Vent		Appelez-nous	-
32	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 9759243)			Immediately	$ 55.44
33	9759713		Base, Chassis				$ 100.19
34	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
35	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
36	4449845		Support, Bracket		Appelez-nous	-
37	4450365		Insulation, Back				$ 70.95
37	4456801		Trim, Bottom		Appelez-nous	-
37	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
37	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
