01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts

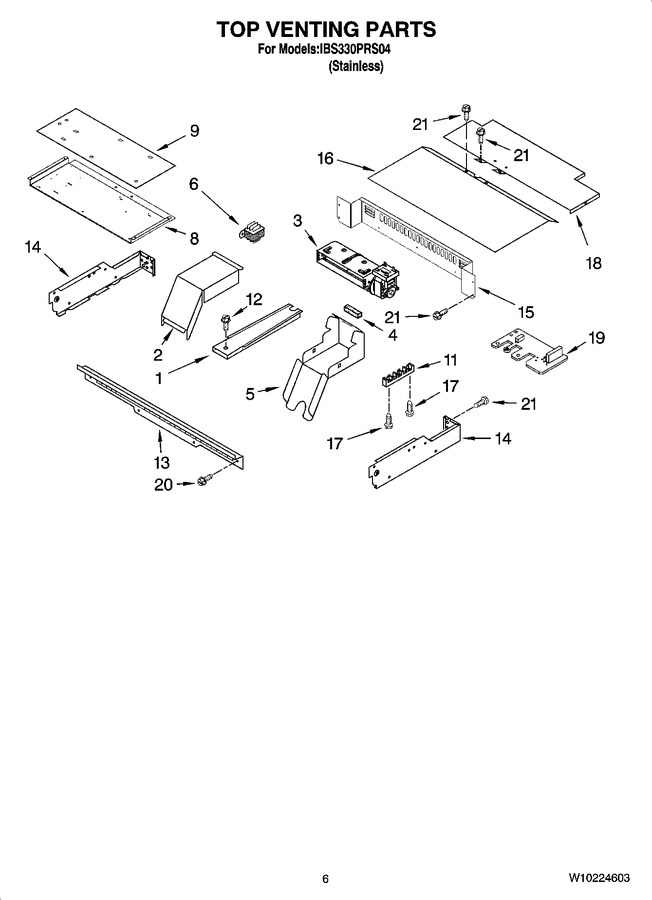

05 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 105.01 | |||||
| 2 | 4455178 | Elbow, Vent- Top |
|
$ 15.52 | |||||
| 3 | WP4455352 | Bracket (Replaces: 4455352) |
|
$ 37.51 | |||||
| 3 | W10810687 | Blower (Replaces: 8300223) |
|
Immediately | $ 343.34 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 5 | 4455177 | Elbow, Vent- Bottom |
|
$ 11.39 | |||||
| 6 | 9760587 | Transformer, Control |
|
$ 112.69 | |||||
| 8 | W10171405 | Mounting Plate |
|
- | |||||
| 9 | 8303076 | Insulation |
|
- | |||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 30.13 | ||||
| 12 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 13 | 8303098 | Vent, (control Panel) |
|
$ 174.34 | |||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4451598) |
|
$ 78.41 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4451597) |
|
- | |||||
| 15 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 15 | 8303100 | Back, Control |
|
- | |||||
| 16 | 4450551 | Cover, Top Rear |
|
- | |||||
| 17 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 18 | WP4452367 | Cover, Top Front (Replaces: 4452367) |
|
$ 79.95 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 19 | WP4451985 | Suppressor (Replaces: 4451985) |
|
$ 173.47 | |||||
| 20 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 21 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 27.83 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 4448664 | Clamp |
|
$ 21.41 | ||||||
| WP4450952 | Conduit (Replaces: 4450952) |
|
$ 240.98 | ||||||
| 8303865 | Harness, Door Latch |
|
$ 89.05 | ||||||
| 8303867 | Harness, Main |
|
$ 167.32 | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| 285006 | Paint, Spray (black) (Replaces: 830864) |
|
$ 59.89 | ||||||
| 261900 | Paint, Spray (citrine White) |
|
$ 59.89 | ||||||
| 350930 | Paint, Spray (white) |
|
Immediately | $ 40.12 | |||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 8.16 | ||||||
| WPW10339879 | Tie, Cable (Replaces: 535183) |
|
$ 8.30 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 4450800 | Screw, Ground |
|
$ 13.47 | ||||||
| 4452400 | Lead, Ground Strap |
|
$ 45.42 | ||||||
| WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | |||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 |
