SELECT A DIAGRAM

01 - Oven Parts

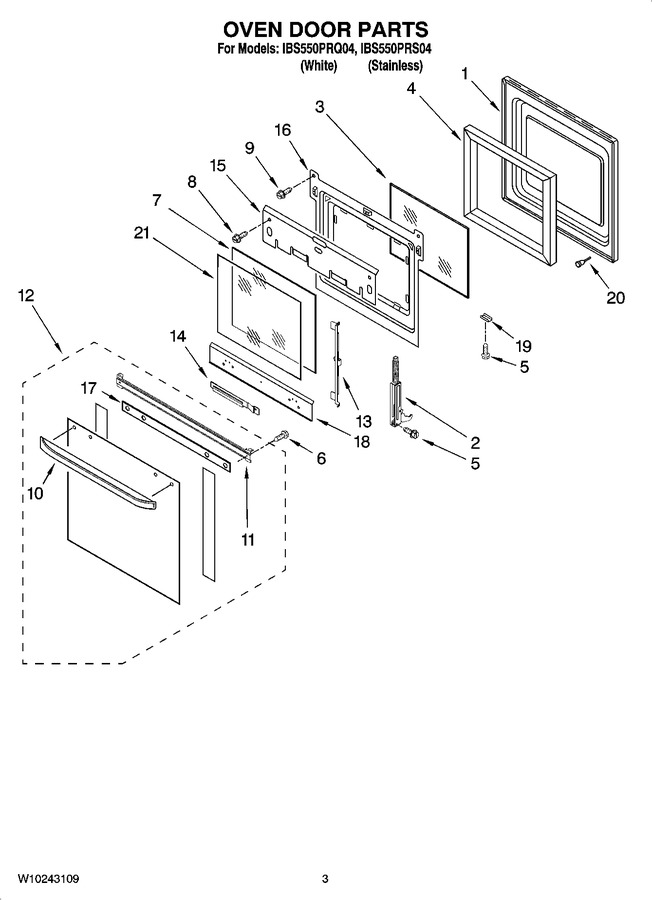

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 9759413)				$ 370.46
2	WP9760574		Hinge, Door (left)   (Replaces: 9760580)			Immediately	$ 67.07
2	WP9760579		Hinge, Door (right)   (Replaces: 9760579)			Immediately	$ 71.50
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
10	8303590		Door Handle (white)		Appelez-nous	-
10	8303589		Door Handle (stainless Steel)				$ 50.37
11	8302795		Bracket, Handle		Appelez-nous	-
12	8304251		Door Glass (stainless Steel)		Appelez-nous	-
12	8304253		Door Glass (white)		Appelez-nous	-
13	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
14	9759230		Bracket (3rdglass)				$ 36.30
15	4457104		Shield, Heat				$ 39.22
16	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
17	9759116		Seal, Door Top		Appelez-nous	-
18	4457114		Shield, Heat (btm)				$ 217.79
19	4450864		Retainer, Clip (2) (white)		Appelez-nous	-
19	W10158497		Retainer, Clip (2) (stainless Steel)				$ 5.65
20	4448520		Bumper, Door (3)				$ 22.25
21	WP9759225		Glass, Inner (4mm) (stainless Model)   (Replaces: 9759225)			Immediately	$ 194.20
21	9759228		Glass, Inner (4mm) (white Model)				$ 87.91

    View Diagram in Separate Window       Print Part List
