SELECT A DIAGRAM

01 - Oven Parts

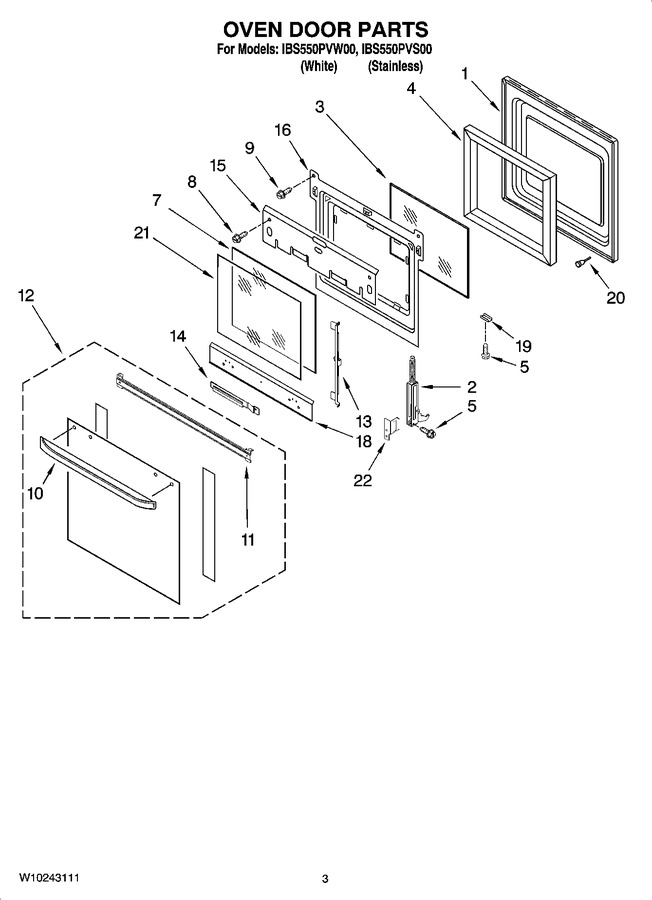

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 9759413)				$ 370.46
2	WP9760577		Hinge, Door (right)   (Replaces: 9760577)			Immediately	$ 116.54
2	WP9760578		Hinge, Door (left)   (Replaces: 9760578)			Immediately	$ 115.46
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
10	W10158977		Door Handle		Appelez-nous	-
11	W10159515		Bracket, Handle		Appelez-nous	-
12	W10163963		Door Glass (stainless)		Appelez-nous	-
12	W10163964		Door Glass (white)		Appelez-nous	-
13	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
14	9759230		Bracket (3rdglass)				$ 36.30
15	4457104		Shield, Heat				$ 39.22
16	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
18	4457114		Shield, Heat (btm)				$ 217.79
19	W10158978		Retainer, Clip		Appelez-nous	-
20	4448520		Bumper, Door (3)				$ 22.25
21	9759228		Glass, Inner (white)				$ 87.91
21	WP9759225		Glass, Inner (stainless)   (Replaces: 9759225)			Immediately	$ 194.20
22	W10137043		Cover, Hinge (left)				$ 39.01
22	W10137044		Cover, Hinge (right)				$ 38.61

    View Diagram in Separate Window       Print Part List
