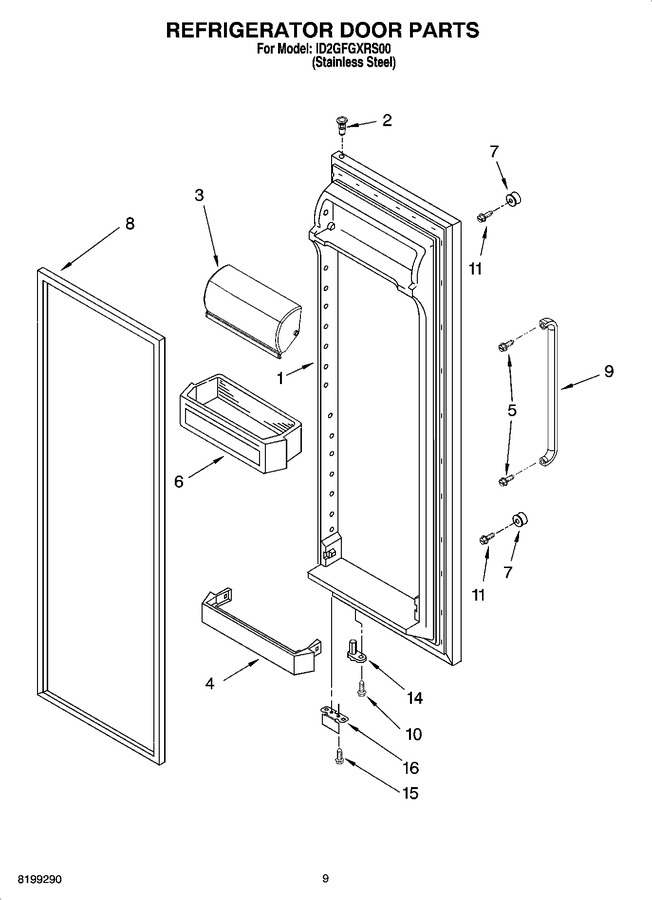

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | L2308121S | Refrigerator Door (includes Item 8) (stainless Steel) (Replaces: 2308121S) |
|
- | |||||
| 2 | 2308050 | Thimble, Top |
|
- | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 85.16 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022K) |
|
Immediately | $ 72.80 | ||||
| 5 | 8533976 | Screw |
|
$ 8.35 | |||||
| 6 | WPW10321304 | Shelf Bin (3) (Replaces: 2179607K) |
|
Immediately | $ 44.73 | ||||
| 7 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 8 | 2159081 | Door Gasket, Magnetic (black) (Replaces: 2221311) |
|
$ 319.60 | |||||
| 9 | 2303324S | Handle (stainless) |
|
$ 180.55 | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 11 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 16 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 40.03 |
