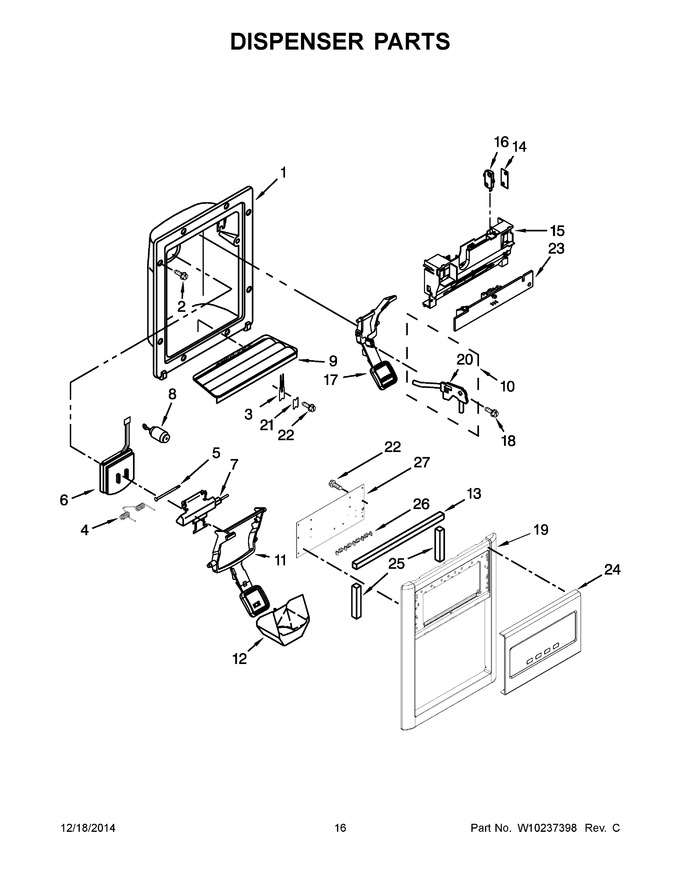

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Spring, Lever (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 87.40 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 26.83 | ||||
| 7 | 2304355 | Support, Ice Door |
|
- | |||||
| 8 | 2205686 | Dashpot, Dispenser |
|
- | |||||
| 9 | WP2206670W | Grille, Overflow (white) (Replaces: 2206670W) |
|
$ 72.24 | |||||
| 10 | 8201537 | Assembly, Water Tube And Bracket (Replaces: 2209718) |
|
$ 140.84 | |||||
| 11 | WPW10152853 | Lever, Ice Dispenser (white) (Replaces: W10152853) |
|
$ 111.84 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 13 | 2305571 | Gasket, Front Cover |
|
$ 27.44 | |||||
| 14 | 625834 | Spacer, Holding Switch |
|
$ 7.99 | |||||
| 15 | W10728484 | Bracket, Control (Replaces: W10206221) |
|
$ 60.19 | |||||
| 16 | WP2162361 | Switch (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 17 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: W10152858) |
|
Immediately | $ 109.83 | ||||
| 18 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 | |||||
| 19 | W10136850 | Bezel, Dispenser (white) |
|
$ 194.25 | |||||
| 20 | WP2304673 | Bracket, Water Tube (Replaces: 2304673) |
|
$ 16.38 | |||||
| 21 | WP2195051 | Relief, Strain (Replaces: 2195051) |
|
$ 12.54 | |||||
| 22 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 23 | 2321720 | Led Assembly, Bracket |
|
- | |||||
| 24 | W10204997 | Fascia Assembly, Dispenser (white) |
|
$ 89.54 | |||||
| 25 | W10194025 | Gasket, Front Cover |
|
- | |||||
| 26 | W10170412 | Support, Window |
|
- | |||||
| 27 | WPW10175973 | Control, Electronic (Replaces: W10175973) |
|
$ 321.86 | |||||
| 11A | WPW10152854 | Lever, Ice Dispenser (black) (Replaces: W10152854) |
|
$ 109.00 | |||||
| 17A | WPW10152859 | Lever, Water Dispenser (black) (Replaces: W10152859) |
|
Immediately | $ 102.82 | ||||
| 19A | W10136851 | Bezel, Dispenser (black) |
|
- | |||||
| 24A | W10204998 | Fascia Assembly, Dispenser (black) |
|
- | |||||
| 9A | WP2206670B | Grille, Overflow (black) (Replaces: 2206670B) |
|
Immediately | $ 35.52 |
