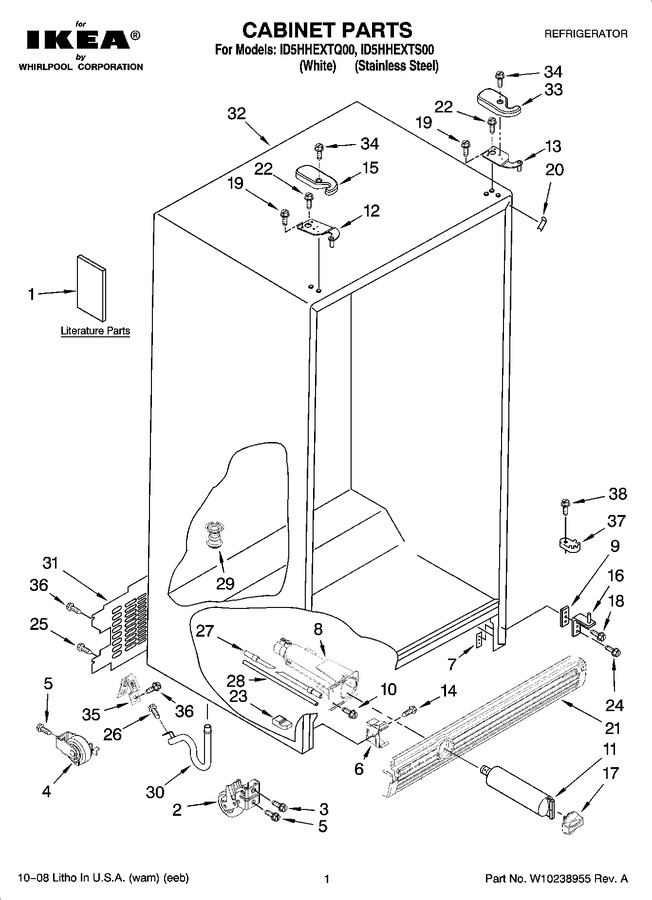

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2311206		Energy Label		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	2311720		Instruction Sheet, Door Removal		Appelez-nous	-
1	2311194		Use & Care Guide		Appelez-nous	-
1	2311815		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Plate, Screw (2)   (Replaces: 2304249)				$ 14.23
8	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35
9	2209697		Shim (2)				$ 41.25
10	WP489500		Screw   (Replaces: 489500)				$ 7.78
11	2255518		Water Filter		Appelez-nous	-
12	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
13	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
14	WP489128		Screw   (Replaces: 488500)				$ 10.88
15	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
15	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 19.52
16	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
17	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 53.20
17	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 55.72
18	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
19	3400858		Screw		Appelez-nous	-
20	WPW10283959		Filler, Wrapper (white)   (Replaces: 2201014)				$ 7.82
20	W11252732		Filler, Wrapper (black)   (Replaces: 2201017)				$ 12.45
21	W10803964		Grille (black)   (Replaces: 2198468B)				$ 127.70
21	W10803964		Grille (white)   (Replaces: 2198468W)				$ 127.70
22	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
23	2186489		Block, Housing Support		Appelez-nous	-
24	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
25	WP488488		Screw   (Replaces: 489290)				$ 7.68
26	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
27	8201597		Tube, Filter Inlet   (Replaces: 2319867)			Immediately	$ 77.02
28	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
29	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
30	W11512417		Extension Tube   (Replaces: 2304937)				$ 34.79
31	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 135.91
33	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 18.63
33	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
34	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
35	549193		Clamp-service Cord				$ 13.39
36	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
37	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
38	WP489483		Screw (2)   (Replaces: 489483)				$ 10.87
