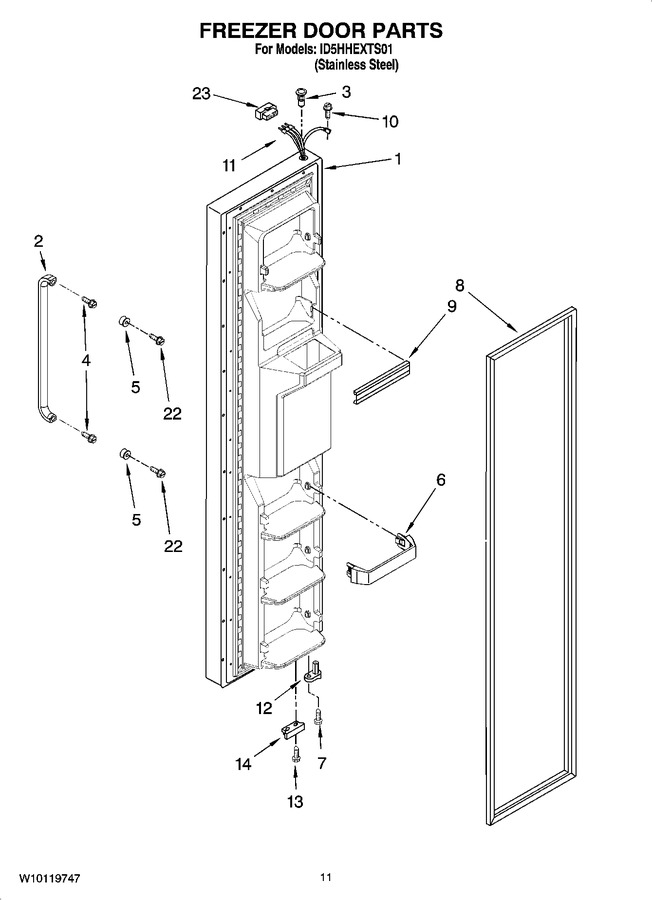

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2323868S | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 2 | 2303324S | Handle (includes 4) (stainless) |
|
$ 180.55 | |||||
| 3 | WP2182181 | Thimble, Top (for Stainless Steel Model) (Replaces: 2182181) |
|
$ 8.15 | |||||
| 4 | 8533976 | Set Screw |
|
$ 8.35 | |||||
| 5 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 6 | WP2309718 | Trivet (4) (Replaces: 2309718) |
|
$ 61.49 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2309533) |
|
$ 332.49 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2209681) |
|
Immediately | $ 24.27 | ||||
| 10 | WP489464 | Screw (Replaces: 3400896) |
|
Immediately | $ 8.38 | ||||
| 11 | 2311641 | Wire Harness |
|
- | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 22 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 23 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 |
