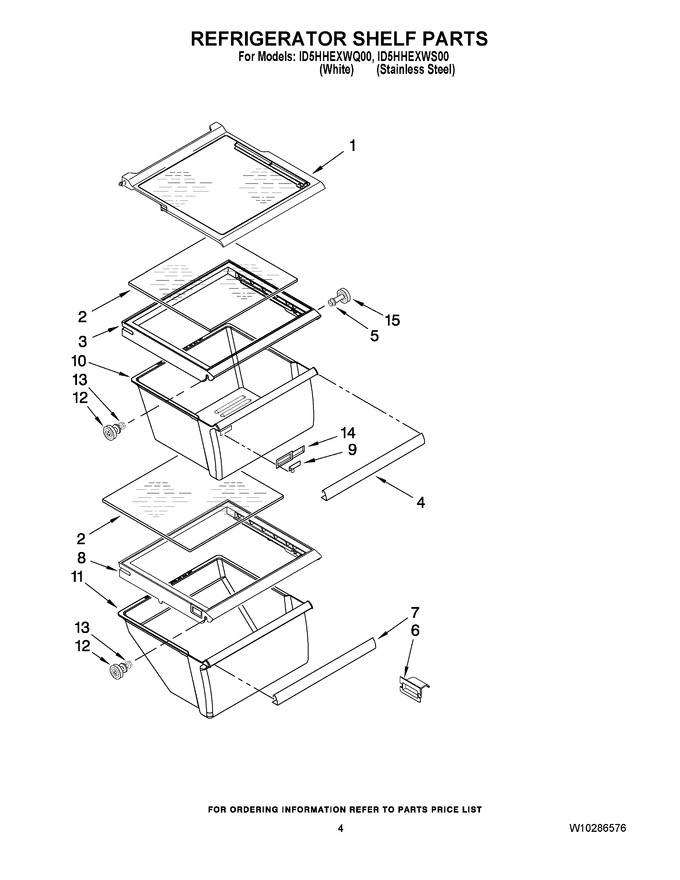

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10276348 | Shelf Assembly, Spillguard (3) (Replaces: 2309524) |
|
Immediately | $ 223.91 | ||||
| 2 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 232.03 | |||||
| 3 | W10508993 | Cover, Crisper (Replaces: 2209698) |
|
$ 305.85 | |||||
| 4 | WP2179234 | Trim, Pan (Replaces: 2255593) |
|
$ 88.57 | |||||
| 5 | W10191952 | Screw |
|
$ 5.65 | |||||
| 6 | 2179350 | Deflector |
|
$ 85.89 | |||||
| 7 | WP2179234 | Trim, Meat Pan (Replaces: 2255592) |
|
$ 88.57 | |||||
| 8 | W10508993 | Cover, Meat Pan (Replaces: 2311726) |
|
$ 305.85 | |||||
| 9 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 30.60 | |||||
| 10 | WP2188656 | Crisper Pan (Replaces: 2188652) |
|
$ 143.22 | |||||
| 11 | WP2188664 | Meat Pan (Replaces: 2188654) |
|
Immediately | $ 92.70 | ||||
| 12 | W11223328 | Stud Assembly (Replaces: W10173126) |
|
Immediately | $ 14.77 | ||||
| 13 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 9.14 | |||||
| 14 | WP2179343 | Housing, Humidity Control (Replaces: 2179343) |
|
$ 34.02 | |||||
| 15 | W11527119 | Stud Assembly (Replaces: W10173127) |
|
- |
