SELECT A DIAGRAM

01 - Cabinet Parts

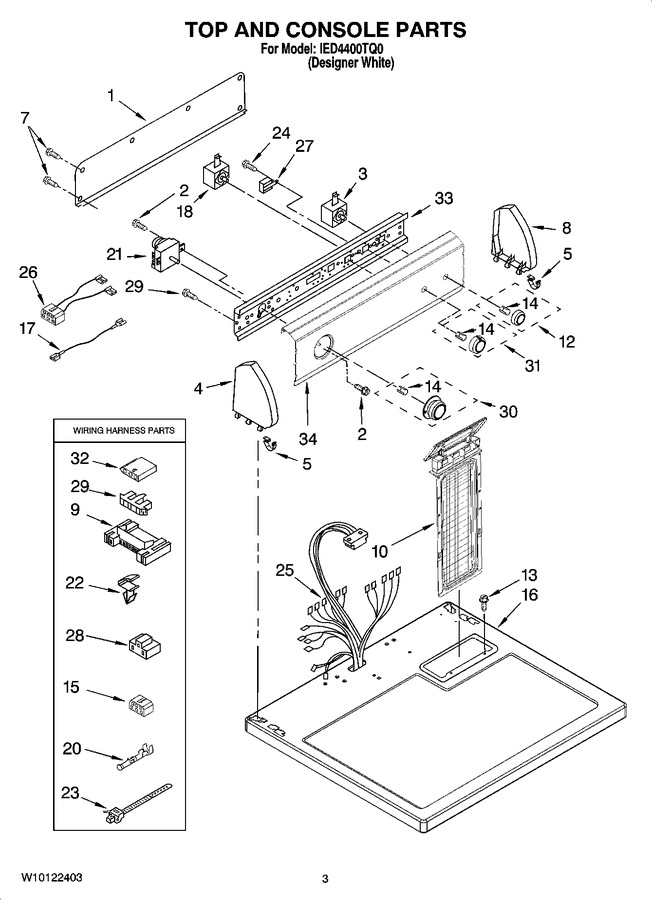

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	8579674		Cap, End (l.h.)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
8	8579673		Cap, End (r.h.)		Appelez-nous	-
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
12	W10110066		Knob, Push-to-start		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	3347243		Connector 6-circuit		Appelez-nous	-
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
17	3401684		Wire, Jumper (black)				$ 34.57
18	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
20	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
21	WP3979617		Timer   (Replaces: 3979617)			Immediately	$ 385.79
22	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
23	3391249		Tie, Cable		Appelez-nous	-
24	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
25	8576502		Harness, Wiring		Appelez-nous	-
26	8539893		Wire-jumper Assembly (temperature)				$ 19.78
27	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
28	3401144		Connector, (pts Relay)				$ 12.81
29	3397269		Connector, Timer				$ 25.55
30	W10110064		Timer-knob Assembly				$ 26.97
31	WPW10110063		Knob, Control   (Replaces: W10110063)			Immediately	$ 59.13
32	3936144		Connector				$ 21.22
33	8579672		Bracket, Control		Appelez-nous	-
34	W10114902		Panel, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
