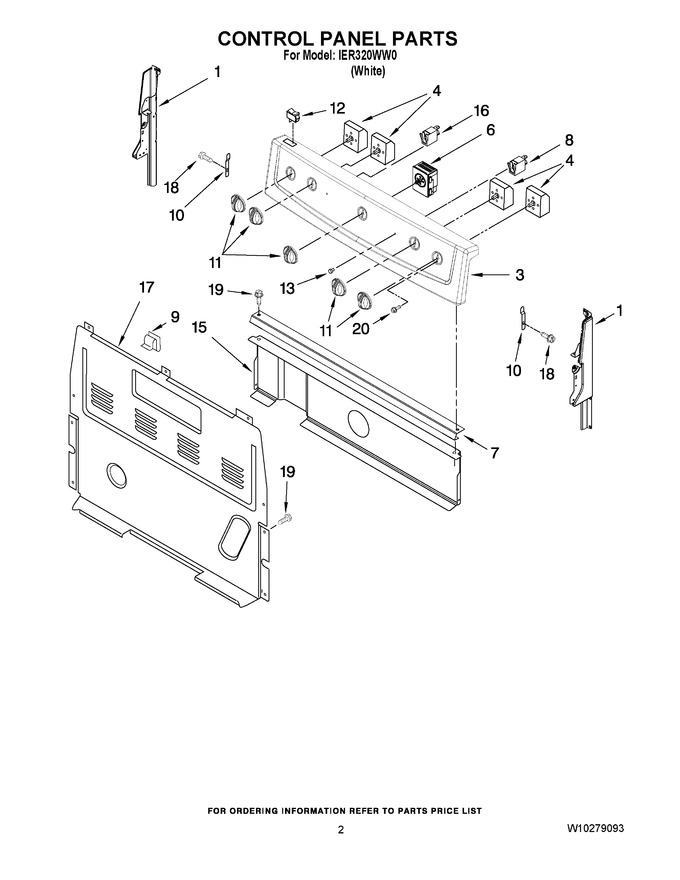

02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap, Left Hand (white)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap, Right Hand (white)   (Replaces: W10184434)				$ 60.83
3	W10252573		Panel, Backguard (white)		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
6	WP9762215		Switch, Selector   (Replaces: 9762215)			Immediately	$ 365.17
7	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 98.85
8	WP8523266		Indicator, 250v   (Replaces: 8523266)				$ 117.50
9	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
10	3196200		Clip, Spring (2)				$ 10.45
11	W10259208		Knob (5) (white)				$ 80.29
12	3149360		Switch, Rocker				$ 89.01
13	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
15	8053912		Shield, Heat				$ 34.55
16	WP8523265		Indicator, 125v   (Replaces: 8523265)			Immediately	$ 86.31
17	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
18	3196166		Screw				$ 7.36
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
20	WP3400882		Bolt   (Replaces: 3400882)			Immediately	$ 7.55
