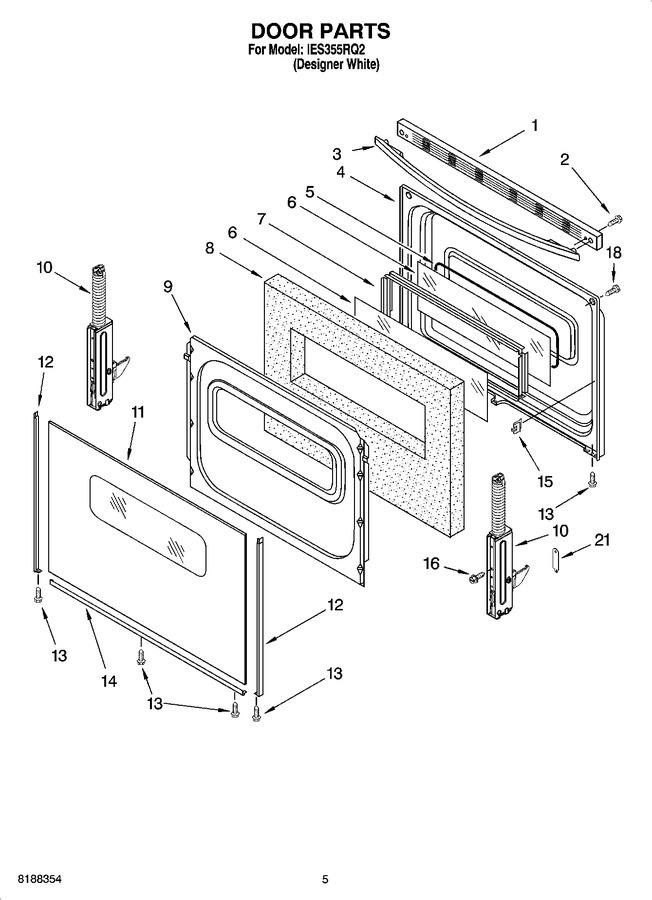

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016370 | Trim, Door Top (white) |
|
$ 79.85 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 370.67 | |||||
| 4 | 9761340 | Liner, Door |
|
$ 361.12 | |||||
| 5 | 8522415 | Seal, Window |
|
$ 75.50 | |||||
| 6 | WP9758164 | Glass, Inner (2) (Replaces: 9758164) |
|
$ 159.93 | |||||
| 7 | 3186290 | Frame, Glass |
|
- | |||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | 9761499 | Retainer, Insul. |
|
$ 325.33 | |||||
| 10 | W10347466 | Hinge, Door (2) (Replaces: 9761493) |
|
Immediately | $ 219.84 | ||||
| 11 | WP9762476 | Glass, Outer Door (white) (Replaces: 8053481) |
|
$ 332.66 | |||||
| 12 | WP8523172 | Trim, Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | WP8523166 | Trim, Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 16 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 21 | 9761517 | Clip, Door Mntg |
|
$ 48.11 |
