SELECT A DIAGRAM

01 - Top And Console Parts

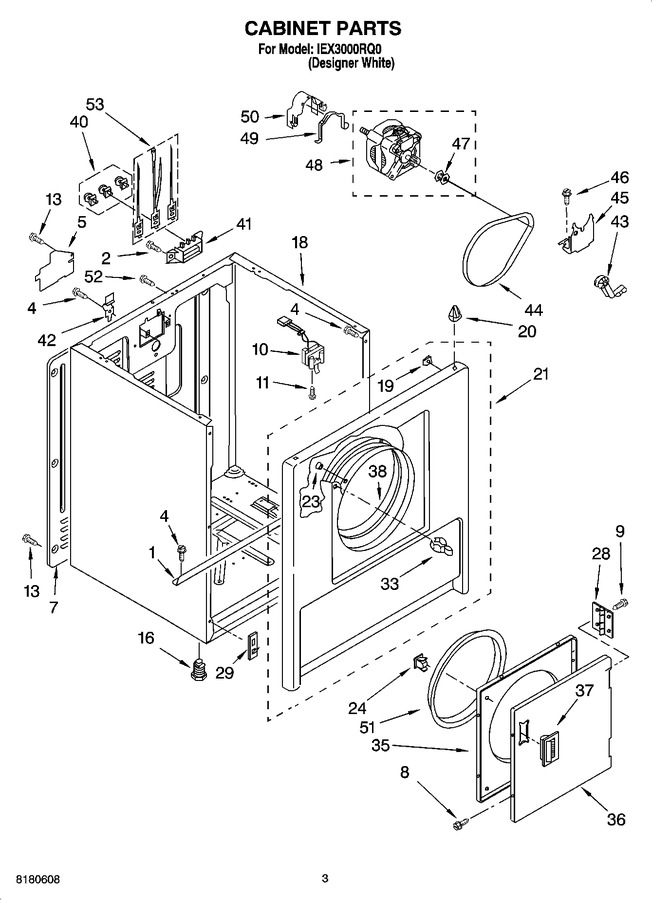

02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8541400		Bracket, Cabinet		Appelez-nous	-
2	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
4	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
5	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 629.75
7	3396807		Panel, Rear		Appelez-nous	-
8	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
9	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.55
10	WP3406102		Door Switch Assembly   (Replaces: 3406102)				$ 41.66
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
13	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
16	49621		Foot, Dryer (4)   (Replaces: 3392100)			Immediately	$ 8.55
18	8533643		Cabinet (includes Illus. 1)   (Replaces: 8530603)				$ 419.22
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 13.31
21	693197		Panel Front Assembly		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
24	WP3389441		Catch, Door   (Replaces: 3389441)				$ 6.20
28	WP348023		Hinge And Pin Assembly (2)   (Replaces: 348023)				$ 9.32
29	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 16.34
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
35	280077		Door, Rear   (Replaces: 695656)				$ 207.46
36	WP348205		Door, Front   (Replaces: 348205)			Immediately	$ 154.76
37	WP686711		Handle, Door   (Replaces: 686711)			Immediately	$ 8.35
38	279264		Seal & Bearing Assembly   (Replaces: 8066123)			Immediately	$ 74.52
40	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 55.66
41	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
42	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
43	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
44	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
45	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
46	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 14.04
47	WP8066184		Pulley   (Replaces: 3394341)			Immediately	$ 51.02
48	279827		Motor Assembly   (Replaces: 8538262)			Immediately	$ 191.95
49	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
50	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 8.21
51	W11613302		Seal, Door   (Replaces: 3390734)				$ 56.31
52	W10850756		Screw, 10-32 X 5/8 (external Ground)   (Replaces: 697776)				$ 8.20
53	279318		Terminal, Tinned & Brass (3) (includes Illus. 40)			Immediately	$ 106.04

    View Diagram in Separate Window       Print Part List
