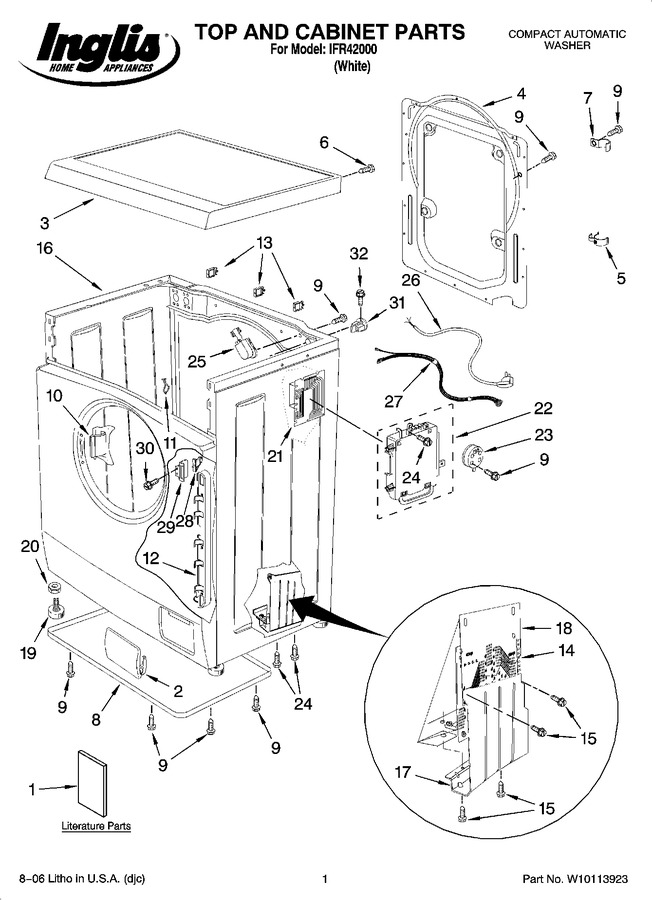

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Door Parts


04 - Dispenser Parts


05 - Basket And Tub Parts


06 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183132		Wiring Diagram		Appelez-nous	-
1	8183129		Use & Care Guide		Appelez-nous	-
2	8182721		Cover, Filter				$ 66.32
3	8182719		Top				$ 140.51
4	8182589		Panel, Rear		Appelez-nous	-
5	8182325		Clamp, Hose		Appelez-nous	-
6	W11233072		Screw   (Replaces: 8182338)			Immediately	$ 14.72
7	8182324		Clamp, Hose		Appelez-nous	-
8	8182319		Bottom Plate		Appelez-nous	-
9	W11245710		Screw   (Replaces: 8182323)			Immediately	$ 14.75
11	8182321		Clip, Harness		Appelez-nous	-
12	8182322		Support, Harness		Appelez-nous	-
13	8182328		Clip		Appelez-nous	-
14	8183141		Control, Inverter		Appelez-nous	-
15	WPW10253196		Screw   (Replaces: 8182333)				$ 4.62
17	8182331		Bracket		Appelez-nous	-
18	8182332		Shield		Appelez-nous	-
19	8182334		Foot, Leveling				$ 39.85
20	8182337		Nut				$ 124.47
21	8183121		Electronic Control		Appelez-nous	-
22	8182342		Bracket, Control		Appelez-nous	-
23	8182388		Switch, Pressure				$ 278.72
24	W11233072		Screw   (Replaces: 8182341)			Immediately	$ 14.72
25	8182645		Filter				$ 47.20
26	8182392		Power Cord		Appelez-nous	-
27	8183125		Harness, Main		Appelez-nous	-
28	8182690		Microswitch, Door				$ 58.66
29	8182718		Bracket				$ 97.61
30	8182401		Screw				$ 16.52
31	8182731		Strain Relief		Appelez-nous	-
32	8182732		Screw		Appelez-nous	-
