SELECT A DIAGRAM

01 - Cabinet And Door Parts

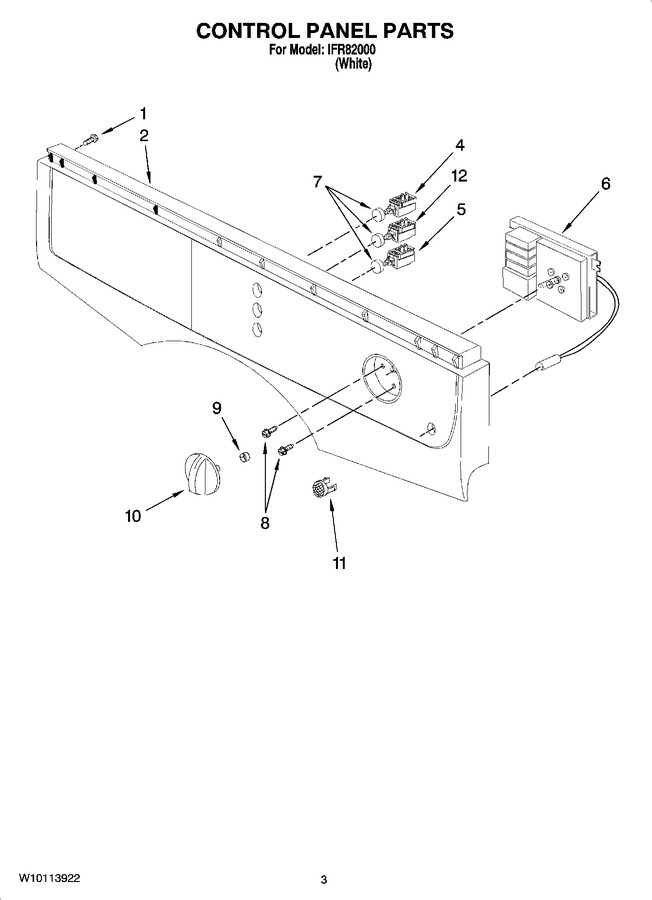

02 - Control Panel Parts


03 - Drum And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: 8182338)			Immediately	$ 14.72
2	8182988		Control Panel		Appelez-nous	-
4	8182576		Switch, Start		Appelez-nous	-
5	8182577		Switch, On/off		Appelez-nous	-
6	8182522		Timer & Indicator Light Assembly (indicator Light Not Serviced Separately)				$ 900.12
7	8182575		Button, Push				$ 30.77
8	W11245710		Screw, Timer   (Replaces: 8182323)			Immediately	$ 14.75
9	WP8182361		Clip, Knob   (Replaces: 8182361)				$ 143.38
10	8183116		Knob				$ 17.07
11	8183119		Lens, Indicator		Appelez-nous	-
12	8183117		Switch, Temperature		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
