SELECT A DIAGRAM

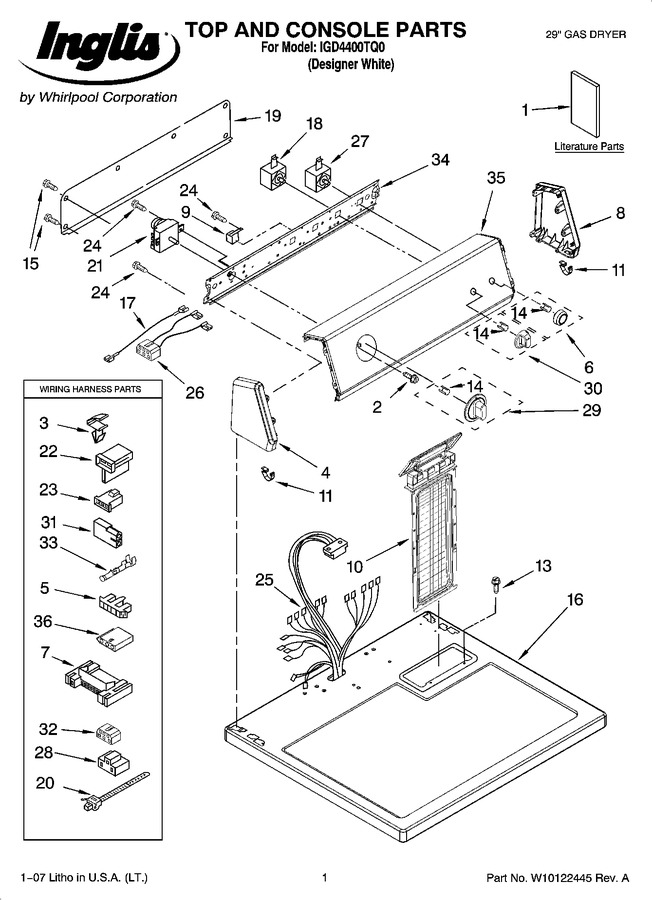

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | W10088971 | Instructions, Installation |
|
- | |||||
| 1 | W10042990 | Sheet, Cycle Feature |
|
- | |||||
| 1 | 8578202 | Use & Care Guide |
|
- | |||||
| 1 | 8576817 | Wiring Diagram |
|
- | |||||
| 2 | 3400859 | Screw, 8-18 X 7/32 (Replaces: 8533951) |
|
$ 13.88 | |||||
| 3 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 4 | 8579674 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 6 | W10110066 | Knob, Push-to-start |
|
- | |||||
| 7 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 8 | 8579673 | Cap, End (r.h.) |
|
- | |||||
| 9 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8312709 | Spring-clip Knob (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 18 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 131.16 | |||||
| 19 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 20 | 3391249 | Tie, Cable |
|
- | |||||
| 21 | WP8299765 | Timer (Replaces: 8299765) |
|
$ 336.63 | |||||
| 22 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 23 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 24 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 25 | 8299878 | Harness, Wiring |
|
- | |||||
| 26 | 8539893 | Wire-jumper Assembly (temperature) |
|
$ 19.78 | |||||
| 27 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 92.88 | ||||
| 28 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 29 | W10110064 | Timer-knob Assembly |
|
$ 26.97 | |||||
| 30 | WPW10110063 | Knob, Control (Replaces: W10110063) |
|
Immediately | $ 59.13 | ||||
| 31 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 32 | 3347243 | Connector 6-circuit |
|
- | |||||
| 33 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 34 | 8579672 | Bracket, Control |
|
- | |||||
| 35 | W10114902 | Panel, Control |
|
- | |||||
| 36 | 3936144 | Connector |
|
$ 21.22 |
