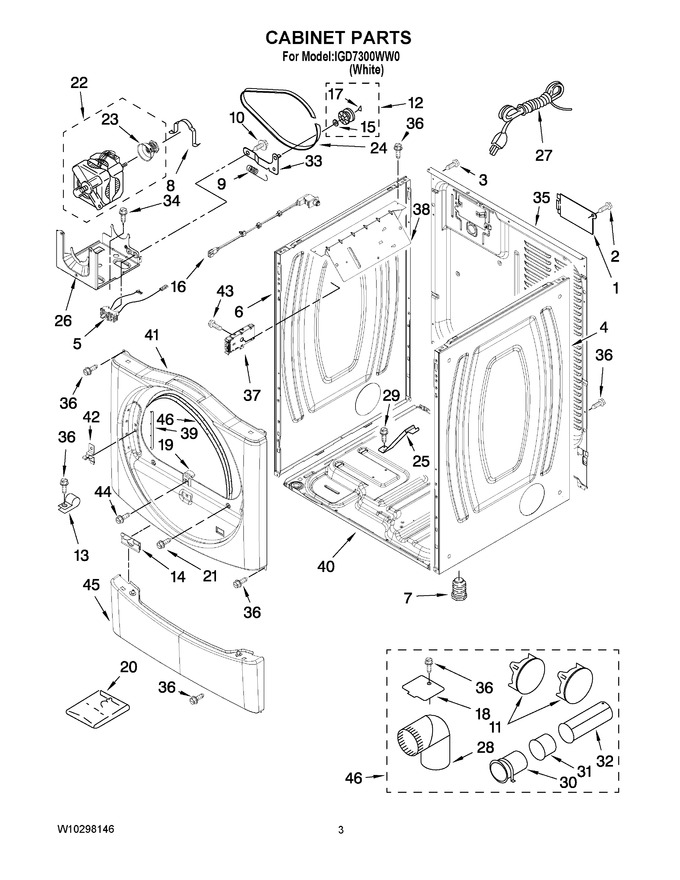

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 8533974)				$ 8.20
4	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 350.58
5	WPW10411937		Switch, Broken (belt)   (Replaces: W10246525)			Immediately	$ 36.06
6	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 350.58
7	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
8	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
9	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
10	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
11	WPW10404617		Plug, Multivent   (Replaces: 49252)				$ 75.58
12	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
13	3978776		Bracket, Gas Pipe		Appelez-nous	-
14	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
15	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 8.36
16	W10128087		Assembly, Door Switch				$ 95.53
17	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
18	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
19	8565083		Ramp, Door		Appelez-nous	-
20	8572546		Kit, Stack Assembly			Immediately	$ 84.63
21	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
22	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
23	W10837625		Pulley, 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
24	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
25	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
26	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
27	W11628810		Cord, Power   (Replaces: 3401401)				$ 101.90
28	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
29	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
30	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
31	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
32	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
33	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
34	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
35	8565059		Panel, Rear				$ 244.90
36	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
37	W10235613		Control Board				$ 288.51
38	WP8563727		Control Bracket   (Replaces: 8563727)				$ 179.69
39	W10085210		Label-hinge Hole Cover				$ 85.03
40	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 365.36
41	W10251264		Front Panel Assembly (includes Item 14)				$ 344.07
42	WP8565122		Strike, Door (1)   (Replaces: 8565122)			Immediately	$ 8.65
43	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
44	WPW10266747		Screw, 10-16 X 1/2   (Replaces: 8574968)				$ 73.96
45	WP8540621		Panel, Toe   (Replaces: 8540621)				$ 189.38
46	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (graphite)   (Replaces: 279915)			Immediately	$ 76.65
46	WP3387242		Seal-drum Front   (Replaces: 3387242)			Immediately	$ 31.42
46	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65
NI	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
