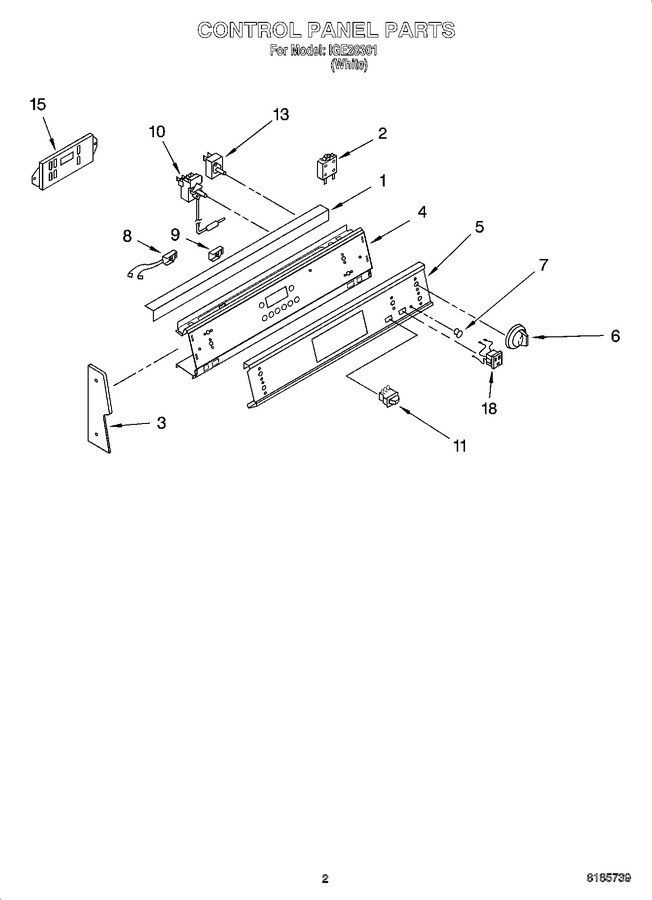

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780492PW		Lamp Cover, Black		Appelez-nous	-
2	3191072		Breaker, 15 Amp		Appelez-nous	-
3	9750262FW		End Cap L.h.		Appelez-nous	-
3	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
3	9750263FW		End Cap R.h.		Appelez-nous	-
4	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
4	9781776		Panel, Control (backguard)		Appelez-nous	-
5	9781708		Panel, Control (faceplate)		Appelez-nous	-
6	9750272FW		Knobs, Control (5)		Appelez-nous	-
7	WP9750343		Lens, Indicator (3)   (Replaces: 9752589)			Immediately	$ 6.00
8	9780801		Light Module (oven)		Appelez-nous	-
9	313102		Light Module, (burners) (2)				$ 66.48
10	3400853		Screw (2)		Appelez-nous	-
10	6700G0001		Thermostat, Oven   (Replaces: 9750401)			Immediately	$ 328.86
11	3191100FW		Switch, Rocker		Appelez-nous	-
13	WP9750638		Infinite Switch (1400w 6``)   (Replaces: 9750638)			Immediately	$ 113.89
13	WP3400882		Screw (8) 8-32 X 3/16   (Replaces: 3400816)			Immediately	$ 7.55
13	3400853		Screw (2)		Appelez-nous	-
13	WP9750641		Infinite Switch (2400w 8``)   (Replaces: 9750641)			Immediately	$ 103.02
15	9781716		Timer / Clock		Appelez-nous	-
18	9751480FW		Outlet, Untimed		Appelez-nous	-
