01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts
06 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

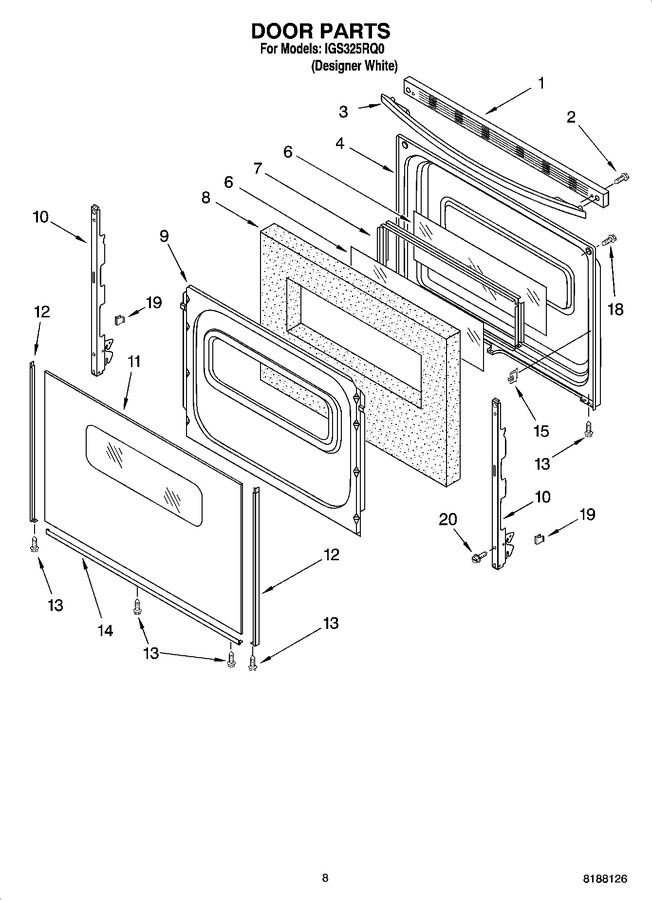

| 1 | 8522433 | Trim, Top (white) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 8.69 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 353.02 | |||||
| 4 | 3186296 | Liner, Door |
|
- | |||||
| 6 | WP9758164 | Glass, Inner (Replaces: 9758164) |
|
$ 152.31 | |||||
| 7 | 3186290 | Frame, Glass |
|
- | |||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 96.54 | ||||
| 9 | 9761499 | Retainer, Insul. (Replaces: 3186299) |
|
$ 309.84 | |||||
| 10 | WP8053807 | Hinge, Door (2) (Replaces: 8053807) |
|
$ 90.81 | |||||
| 11 | WP9762476 | Glass, Outer Door (white) (Replaces: 8053481) |
|
$ 316.82 | |||||
| 12 | WP8523166 | Trim, Door Side Right Hand (white) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | WP8523172 | Trim, Door Side Left Hand (white) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.19 | ||||
| 14 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 58.45 | ||||
| 15 | 3196025 | Clip, Door Glass |
|
$ 20.10 | |||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.96 | ||||
| 19 | 3196925 | Clip, Door Stop (2) |
|
$ 9.06 | |||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 8524207 | Harness, Wire |
|
$ 52.99 | ||||||
| 8523599 | Harness, Wire (cooktop-spark) Bake / Broil |
|
$ 139.59 | ||||||
| 3196896 | Clip-wire |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 84.76 | ||||||
| 3196696 | Clip, Wire |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 19.55 | ||||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 13.61 | ||||||
| 3195927 | Tie,wire |
|
- | ||||||
| WP98997 | Clip (Replaces: 98997) |
|
$ 11.09 | ||||||
| 9756904 | Pin Kit-dr Removal |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350956 | Paint, Pressurized Spray (12 Oz.) (almond) |
|
$ 51.44 | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 89.66 | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 83.07 | |||||
| 261582 | Grease |
|
- | ||||||
| W11839019 | Anti-tip Kit (Replaces: 9757976) |
|
Immediately | $ 27.18 | |||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 57.04 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 91.81 | ||||||
| WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 310.42 | ||||||
| 9758205 | Harness, Wire (main) |
|
- |
