SELECT A DIAGRAM

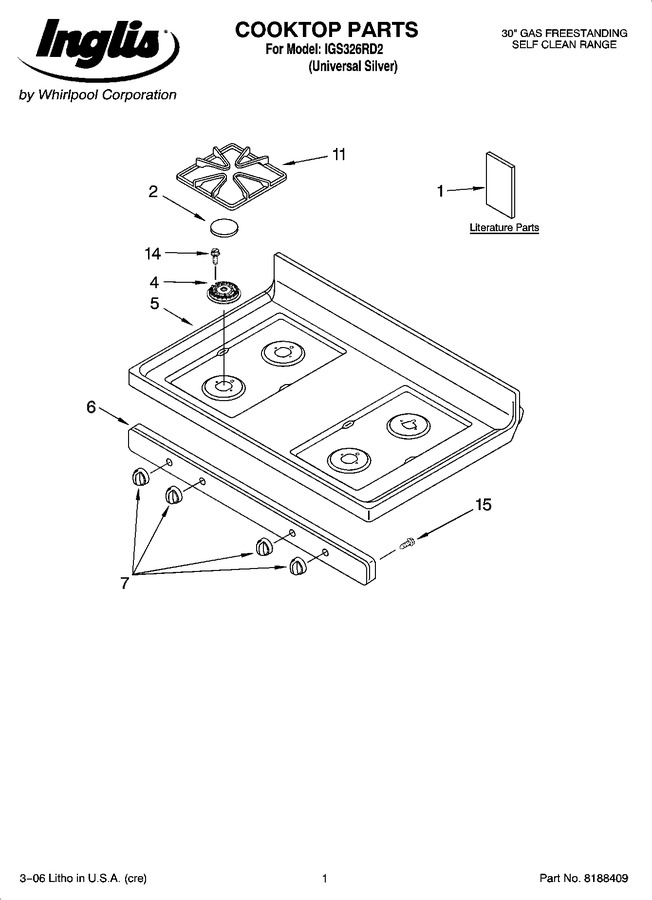

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts
06 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9758657 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | W10017540 | Literatrure Parts (guide, Use & Care) |
|
- | |||||
| 1 | 9755996 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WP3191901 | Cap, Burner (large (3) (black)) (Replaces: 3191901) |
|
$ 128.91 | |||||
| 2 | WP3191898 | Cap, Burner (small (1) (black)) (Replaces: 3191898) |
|
$ 71.00 | |||||
| 4 | 4455979 | Burner (rr) |
|
$ 28.52 | |||||
| 4 | WP4455980 | Burner (lf - Lr - Rf) (Replaces: 4455980) |
|
$ 65.21 | |||||
| 5 | 8272253 | Cooktop |
|
- | |||||
| 6 | 9761876 | Panel, Manifold |
|
- | |||||
| 7 | WP8273103 | Knob, Burner (4) (Replaces: 8273103) |
|
Immediately | $ 16.85 | ||||
| 11 | WPW10268483 | Grate, Burner (4) (black) (Replaces: 8053458) |
|
$ 140.02 | |||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
