SELECT A DIAGRAM

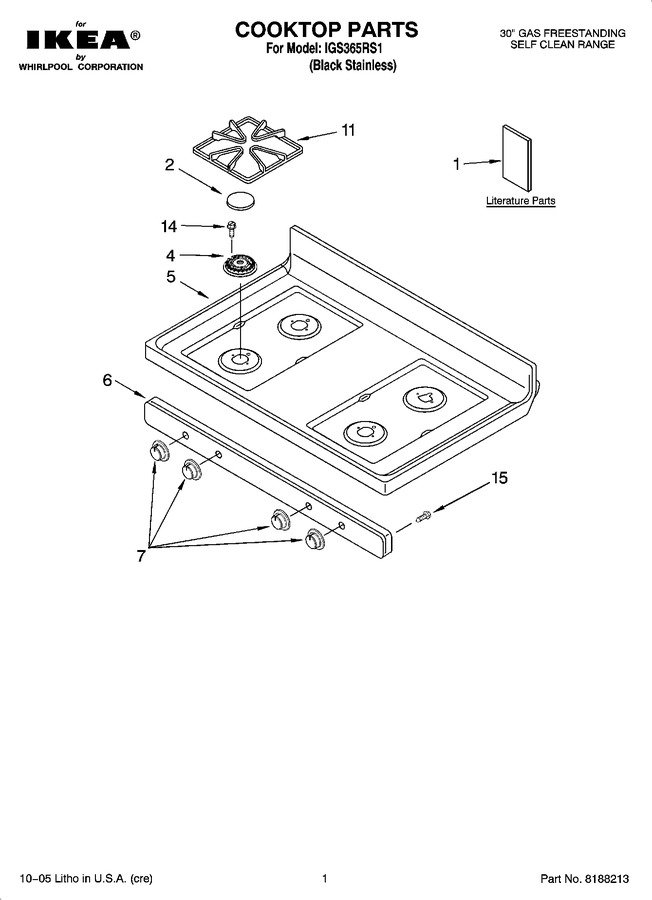

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Broiler Parts


06 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9758661		Instructions, Installation		Appelez-nous	-
1	9757142		Install, Instr (spanish)		Appelez-nous	-
1	9757143		Install, Instr (french)		Appelez-nous	-
1	9762371		Guide, Use & Care		Appelez-nous	-
1	9755996		Tech Sheet Safer Cooking Tips		Appelez-nous	-
1	3191638		Literatrure Parts (english)		Appelez-nous	-
1	9759133		Literatrure Parts (french)		Appelez-nous	-
2	WP3191901		Cap, Burner (lr - Rf)   (Replaces: 3191901)				$ 128.91
2	WP3191904		Cap, Burner (lf)   (Replaces: 3191904)				$ 184.16
2	WP3191898		Cap, Burner (rr)   (Replaces: 3191898)				$ 71.00
4	WP4455980		Burner (lr - Rf)   (Replaces: 4455980)				$ 65.21
4	4455979		Burner (rr)				$ 28.52
4	WP4455981		Burner (lf)   (Replaces: 4455981)			Immediately	$ 91.90
5	8272253		Cooktop		Appelez-nous	-
6	8523855		Panel, Manifold				$ 176.18
7	9758754		Knob, Burner (4)				$ 46.91
11	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 140.02
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
