SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Manifold Parts
03 - Manifold Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Broiler Parts
05 - Broiler Parts

Diagram for 06 - Door Parts, Optional Parts (not Included)
06 - Door Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11520287 Rack, Oven (2)   (Replaces: 3195710) In-Stock Immediately $ 46.84

4 9761031 Drawer, Storage Appelez-nous -
5 W11759228 Bracket, Drawer (2)   (Replaces: 3196817) Special Order $ 28.27

6 WP3400832 Rivet, Push (2) (black)   (Replaces: 3196168) In-Stock Immediately $ 8.18

7 W11230490 Panel, Drawer Front   (Replaces: 8053338) Special Order $ 211.59

8 9755797 Panel, Outer Appelez-nous -
9 WP8053334 Glide, Drawer (2)   (Replaces: 8053334) In-Stock Immediately $ 7.84

10 WP3400832 Screw   (Replaces: 3196168) In-Stock Immediately $ 8.18

11 9757237 Handle, Drawer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

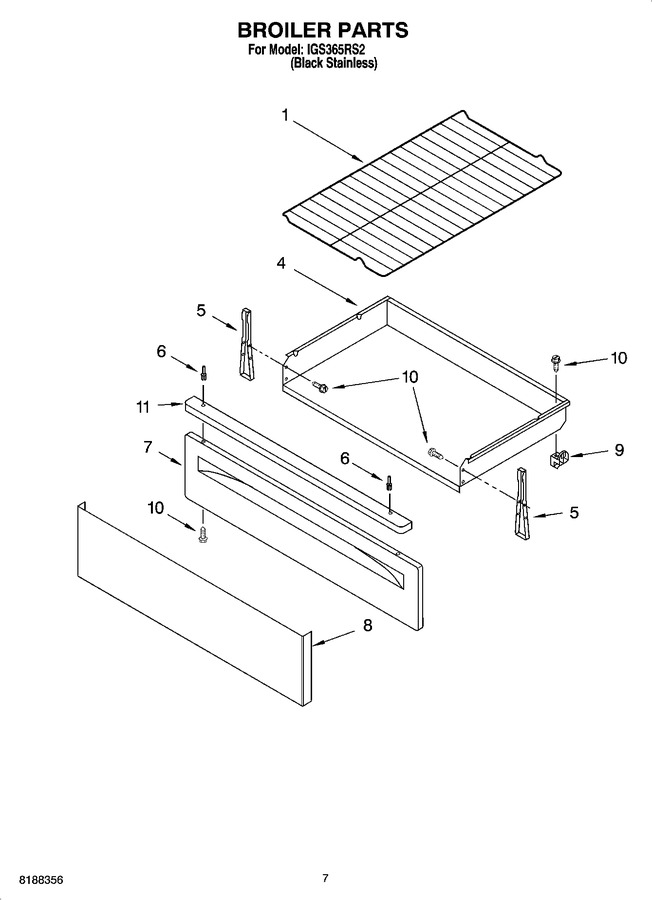

Diagram for IGS365RS2
