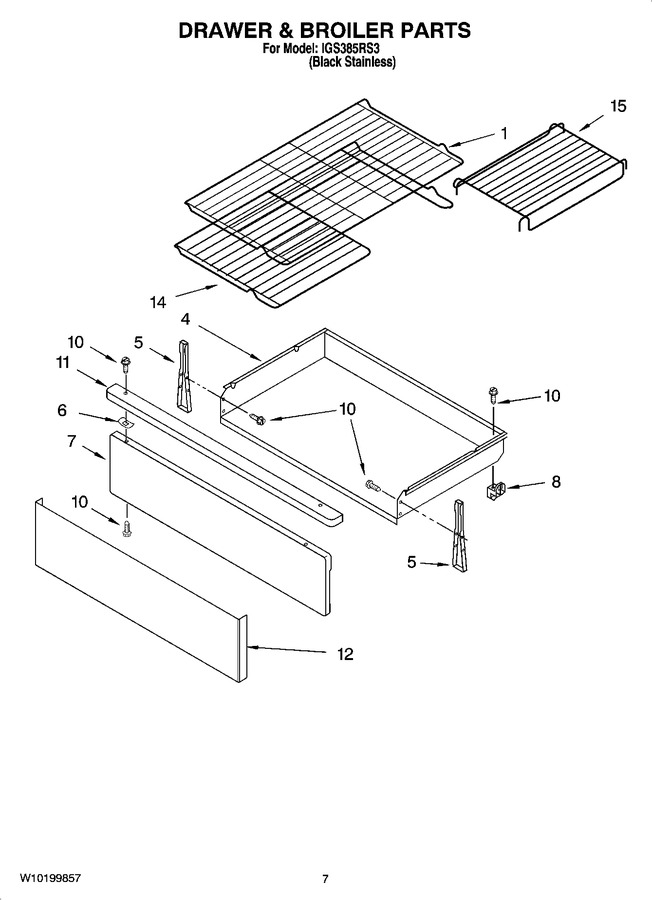

05 - Drawer & Broiler Parts
06 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: W10138079) |
|
Immediately | $ 46.84 | ||||
| 4 | 9761031 | Drawer, Storage |
|
- | |||||
| 5 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 28.27 | |||||
| 6 | WP9781235 | Clip, Speed (Replaces: 9781235) |
|
$ 12.56 | |||||
| 7 | W11230490 | Panel, Drawer Front (black) (Replaces: 8053338) |
|
$ 211.59 | |||||
| 8 | WP8053334 | Spacer, Glide (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 11 | 9757237 | Handle, Drawer |
|
- | |||||
| 12 | W10133364 | Panel, Stainless |
|
- | |||||
| 14 | WP8274021 | Rack, Partial (Replaces: 8274021) |
|
$ 159.11 | |||||
| 15 | 4396927 | Rack, Insert (Replaces: 8274022) |
|
$ 246.10 |
