SELECT A DIAGRAM

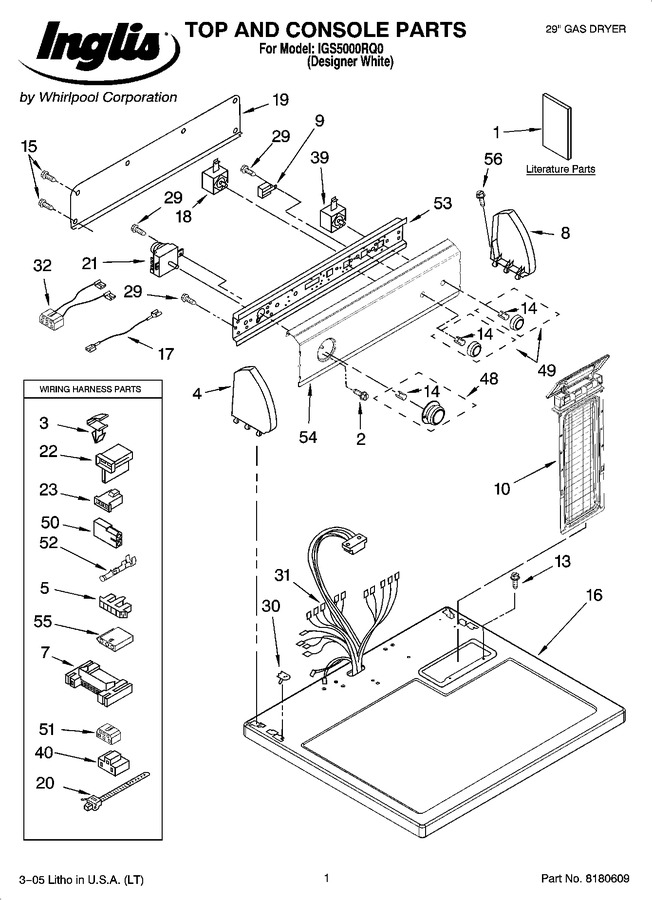

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8562589		Instructions, Installation		Appelez-nous	-
1	8574878		Sheet, Cycle Feature		Appelez-nous	-
1	8574879		Use & Care Guide		Appelez-nous	-
1	8528190		Wiring Diagram		Appelez-nous	-
2	3400859		Screw, 8-18 X 7/32   (Replaces: 8533951)				$ 13.88
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 87.57
5	3397269		Connector, Timer				$ 25.55
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 87.57
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8557930		Top		Appelez-nous	-
17	3401684		Wire, Jumper (black)				$ 34.57
18	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
19	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
20	3391249		Tie, Cable		Appelez-nous	-
21	WP8299765		Timer   (Replaces: 8299765)				$ 336.63
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299878		Harness, Wiring		Appelez-nous	-
32	8539893		Wire-jumper Assembly (temperature)				$ 19.78
39	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
40	3401144		Connector, (pts Relay)				$ 12.81
48	3957383		Timer Knob Assembly				$ 49.38
49	8557460		Knob, Control (2)				$ 23.37
50	717252		Receptacle, 2 Way		Appelez-nous	-
51	3347243		Connector 6-circuit		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
53	8271418		Bracket, Control				$ 57.15
54	8573823		Panel, Control		Appelez-nous	-
55	3936144		Connector				$ 21.22
56	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
