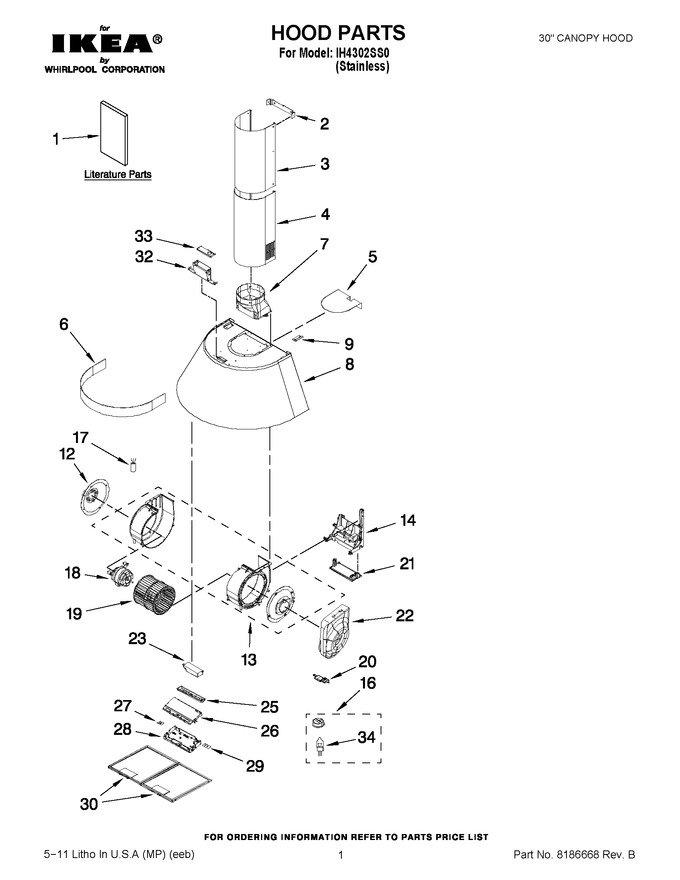

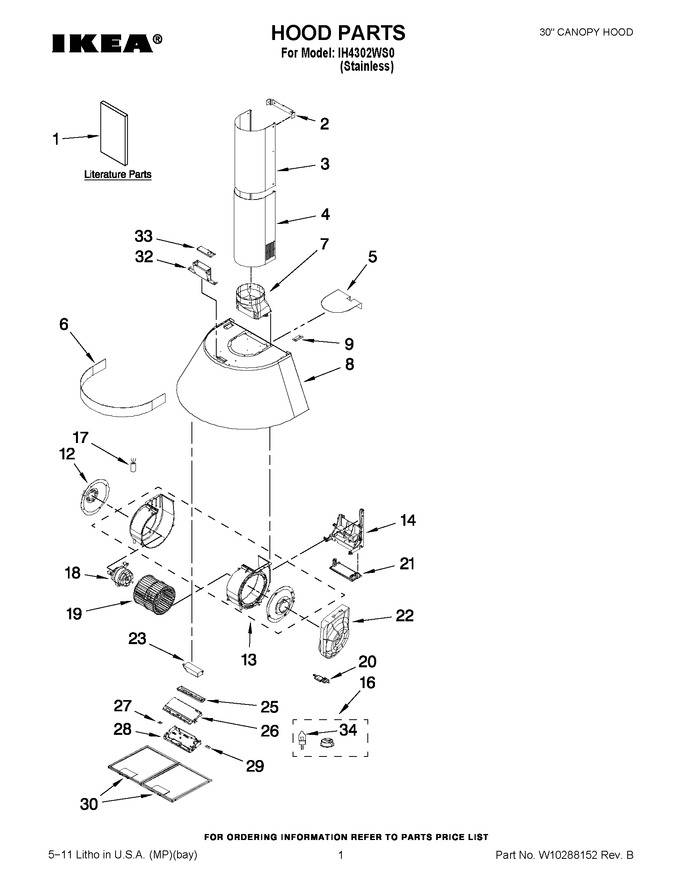

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10018040 | Use & Care Guide |
|
- | |||||
| 2 | 8190846 | Bracket, Chimney |
|
- | |||||
| 3 | 8186699 | Chimney, Upper |
|
- | |||||
| 4 | 8186698 | Chimney, Lower |
|
- | |||||
| 5 | 8186688 | Bracket, Mounting (filter Connction) |
|
- | |||||
| 6 | 8186701 | Frame |
|
- | |||||
| 7 | 8190856 | Duct, Air |
|
- | |||||
| 8 | N/P | Canopy (not Serviced) |
|
- | |||||
| 9 | 8186702 | Bracket, Canopy |
|
- | |||||
| 12 | 8190816 | Grill, Vent |
|
$ 51.29 | |||||
| 13 | 8190813 | Housing, Fan Motor |
|
$ 45.47 | |||||
| 14 | 8186706 | Box, Capacitor |
|
- | |||||
| 16 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 17 | 8186687 | Capacitor |
|
$ 80.90 | |||||
| 18 | 8186685 | Motor, Fan |
|
$ 451.91 | |||||
| 19 | 8190800 | Wheel, Blower |
|
$ 64.42 | |||||
| 20 | 8190809 | Cover, Term Block |
|
- | |||||
| 21 | 8190821 | Cover, Base |
|
- | |||||
| 22 | 8186692 | Filter, Charcoal |
|
$ 193.49 | |||||
| 23 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 229.15 | ||||
| 25 | 8186703 | Panel, Control |
|
- | |||||
| 26 | 8186693 | Cover |
|
- | |||||
| 27 | 8190855 | Switch, Light |
|
$ 69.43 | |||||
| 28 | 8186694 | Box, Control |
|
- | |||||
| 29 | 8190854 | Switch, Motor |
|
$ 51.53 | |||||
| 30 | WPW10383579 | Filter, Grease (Replaces: 8190804) |
|
$ 128.12 | |||||
| 32 | 8186707 | Box, Control |
|
- | |||||
| 33 | 8186708 | Cover, Box |
|
- | |||||
| 34 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 29.28 | ||||
| NI | 8186711 | Hardware, Mounting |
|
- |
