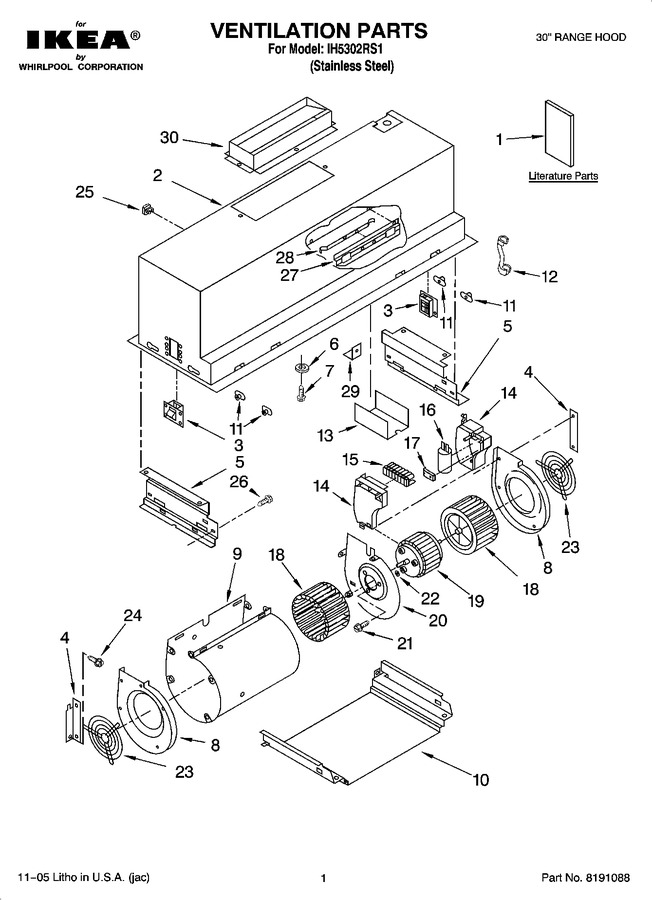

01 - Ventilation Parts


02 - Door And Control Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4360082		Wiring Diagram		Appelez-nous	-
1	9763393		Instructions, Installation		Appelez-nous	-
2	N/A		Hood, Canopy Non-serviceable		Appelez-nous	-
3	4360002		Support, Canopy (2)				$ 49.85
4	4360054		Bracket, Blower (right Side)		Appelez-nous	-
4	4360003		Bracket, Blower (left Side)		Appelez-nous	-
5	4360039		Support, Housing Housing (right Side)		Appelez-nous	-
5	4360004		Support, Housing Housing (left Side)		Appelez-nous	-
6	4360005		Washer				$ 5.62
7	4360006		Screw 5 X 1/2 (3)				$ 6.12
8	4360053		Endcap, Blower (right)		Appelez-nous	-
8	4360007		Endcap, Blower (left)		Appelez-nous	-
9	4360008		Housing, Blower		Appelez-nous	-
10	4360075		Support, Housing		Appelez-nous	-
11	4360063		Bushing (4)		Appelez-nous	-
12	4360062		Strain Relief		Appelez-nous	-
13	4360357		Plate, Mounting		Appelez-nous	-
14	4360056		Cover Terminal (right Side)		Appelez-nous	-
14	4360060		Cover Terminal (left Side)		Appelez-nous	-
15	4360057		Terminal		Appelez-nous	-
16	4360058		Capacitor		Appelez-nous	-
17	4360059		Bracket, Capacitor		Appelez-nous	-
18	4360055		Wheel, Blower (right Side)		Appelez-nous	-
18	4360049		Wheel, Blower (left Side)		Appelez-nous	-
19	4360040		Motor		Appelez-nous	-
20	4360052		Plate, Motor		Appelez-nous	-
21	4344826		Screw 4 X 8 (3)   (Replaces: 4360050)				$ 16.70
22	8190990		Washer (3)		Appelez-nous	-
23	4360064		Grille, Blower (2)		Appelez-nous	-
24	4360067		Screw 6 X 10 (2)		Appelez-nous	-
25	4360074		Clip (2)		Appelez-nous	-
26	4360048		Pin, Filter (2)		Appelez-nous	-
27	4360071		Bracket, Filter		Appelez-nous	-
28	4360072		Spring, Filter (2)		Appelez-nous	-
29	4360120		Bracket (6)		Appelez-nous	-
30	4360001		Damper Canopy		Appelez-nous	-
