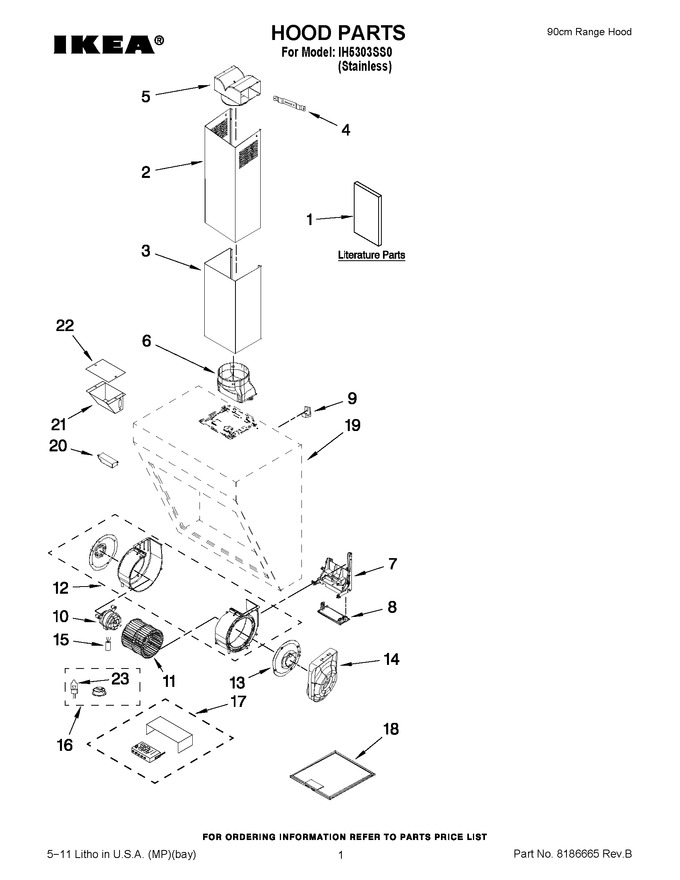

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10018030		Use & Care Guide		Appelez-nous	-
2	8186683		Chimney, Upper		Appelez-nous	-
3	8186682		Chimney, Lower		Appelez-nous	-
4	8190843		Bracket, Mounting				$ 36.86
5	8186690		Duct, Air Diverter		Appelez-nous	-
6	8186689		Duct, Air Connect		Appelez-nous	-
7	8190852		Box, Capacitor		Appelez-nous	-
8	8190853		Cover		Appelez-nous	-
9	8190805		Bracket, Mounting				$ 5.86
10	8186685		Motor, Fan				$ 451.91
11	8190800		Wheel, Blower				$ 64.42
12	8190813		Housing, Fan Motor				$ 45.47
13	8190816		Grill, Vent				$ 51.29
14	8186692		Filter, Charcoal				$ 193.49
15	8186687		Capacitor				$ 80.90
16	WP8186678		Bulb Assembly   (Replaces: 8186678)				$ 73.21
17	8186684		Panel, Control		Appelez-nous	-
18	8186691		Filter, Grease				$ 135.26
19	N/P		Canopy (not Serviced)		Appelez-nous	-
20	W11186486		Transformer   (Replaces: 8186686)			Immediately	$ 229.15
21	8186654		Box, Control		Appelez-nous	-
22	8186704		Box, Cover		Appelez-nous	-
23	WPW10298151		Bulb, Halogen   (Replaces: W10298151)			Immediately	$ 29.28
NI	8186709		Hardware, Mounting		Appelez-nous	-
