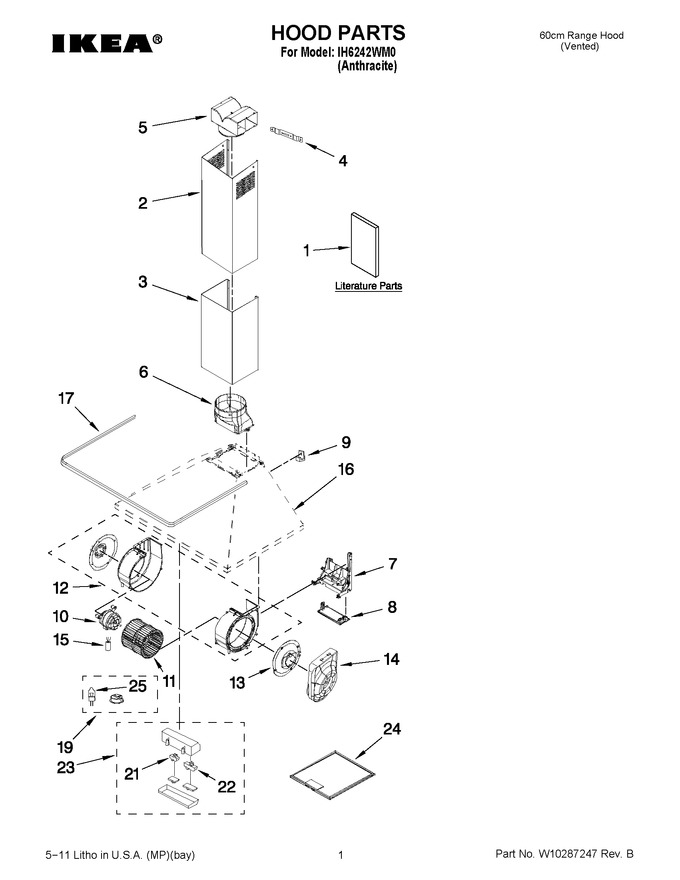

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10018020		Use & Care Guide		Appelez-nous	-
2	8186696		Chimney, Upper		Appelez-nous	-
3	8186695		Chimney, Lower		Appelez-nous	-
4	8190846		Bracket, Mounting		Appelez-nous	-
5	8190857		Duct, Air Diverter				$ 20.08
6	8190856		Duct, Air Connect		Appelez-nous	-
7	8190852		Box, Capacitor		Appelez-nous	-
8	8190853		Cover		Appelez-nous	-
9	8190802		Bracket, Mounting		Appelez-nous	-
10	8190803		Motor, Fan				$ 431.54
11	8190800		Wheel, Blower				$ 64.42
12	8190813		Housing, Fan Motor				$ 45.47
13	8190816		Grill, Vent				$ 51.29
14	4396848		Filter, Charcoal   (Replaces: 8190801)				$ 84.11
15	8190799		Capacitor				$ 47.40
16	N/P		Canopy (not Serviced)		Appelez-nous	-
17	8186697		Trim (frame)		Appelez-nous	-
19	WP8186678		Bulb Assembly   (Replaces: 8186678)				$ 73.21
21	8190854		Switch, Motor				$ 51.53
22	8190855		Switch, Light				$ 69.43
23	8186705		Slider, Control (complete)		Appelez-nous	-
24	W10169961A		Filter, Grease   (Replaces: 8190858)			Immediately	$ 41.83
25	WPW10298151		Bulb, Halogen   (Replaces: W10298151)			Immediately	$ 29.28
NI	8186710		Hardware, Mounting				$ 18.35
