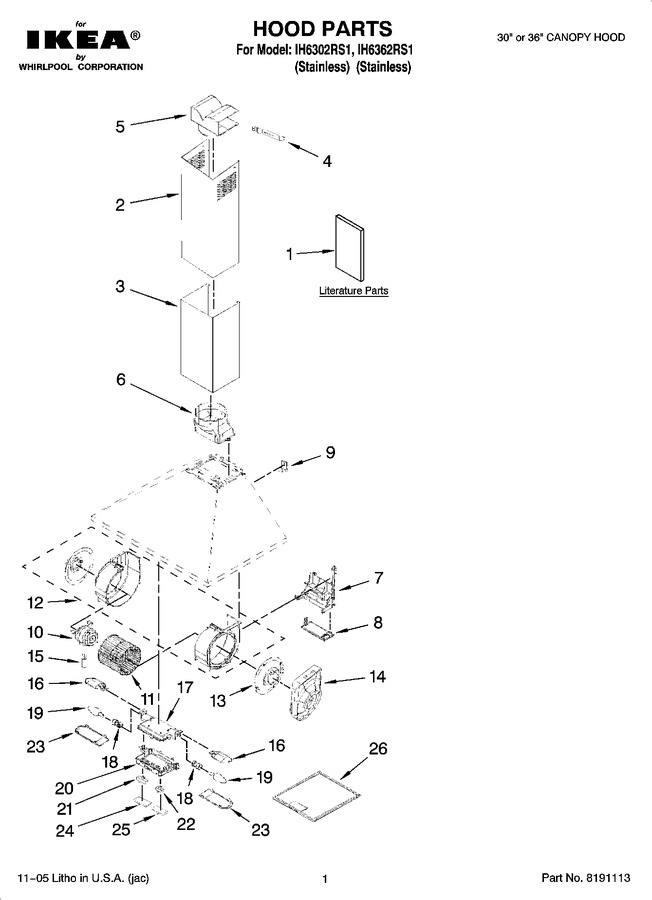

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9763375 | Use & Care Guide |
|
- | |||||
| 2 | 8190845 | Chimney, Upper |
|
- | |||||
| 3 | 8190844 | Chimney, Lower |
|
- | |||||
| 4 | 8190846 | Bracket, Mounting |
|
- | |||||
| 5 | 8190857 | Duct, Air Diverter |
|
$ 20.08 | |||||
| 6 | 8190856 | Duct, Air Connect |
|
- | |||||
| 7 | 8190852 | Box, Capacitor |
|
- | |||||
| 8 | 8190853 | Cover |
|
- | |||||
| 9 | 8190802 | Bracket, Mounting |
|
- | |||||
| 10 | 8190803 | Motor, Fan |
|
$ 431.54 | |||||
| 11 | 8190800 | Wheel, Blower |
|
$ 64.42 | |||||
| 12 | 8190813 | Housing, Fan Motor |
|
$ 45.47 | |||||
| 13 | 8190816 | Grill, Vent |
|
$ 51.29 | |||||
| 14 | 4396848 | Filter, Charcoal (Replaces: 8190801) |
|
$ 84.11 | |||||
| 15 | 8190799 | Capacitor |
|
$ 47.40 | |||||
| 16 | 8190814 | Reflector, Light |
|
- | |||||
| 17 | 8190848 | Bracket, Mounting (switches) |
|
- | |||||
| 18 | 8190797 | Socket, Bulb |
|
$ 76.25 | |||||
| 19 | WP8190806 | Bulb, Light (40w) (Replaces: 8190806) |
|
$ 78.62 | |||||
| 20 | 8190849 | Panel, Control |
|
- | |||||
| 21 | 8190854 | Switch, Motor |
|
$ 51.53 | |||||
| 22 | 8190855 | Switch, Light |
|
$ 69.43 | |||||
| 23 | 8190847 | Frame, Lens |
|
- | |||||
| 24 | 8190851 | Actuator, Motor |
|
- | |||||
| 25 | 8190850 | Actuator, Light |
|
$ 37.89 | |||||
| 26 | 8191054 | Hardware, Mounting |
|
- | |||||
| 26 | W10169961A | Filter, Grease (Replaces: 8190858) |
|
Immediately | $ 41.83 | ||||
| 26 | N/A | Following Parts Not Illustrated |
|
- |
