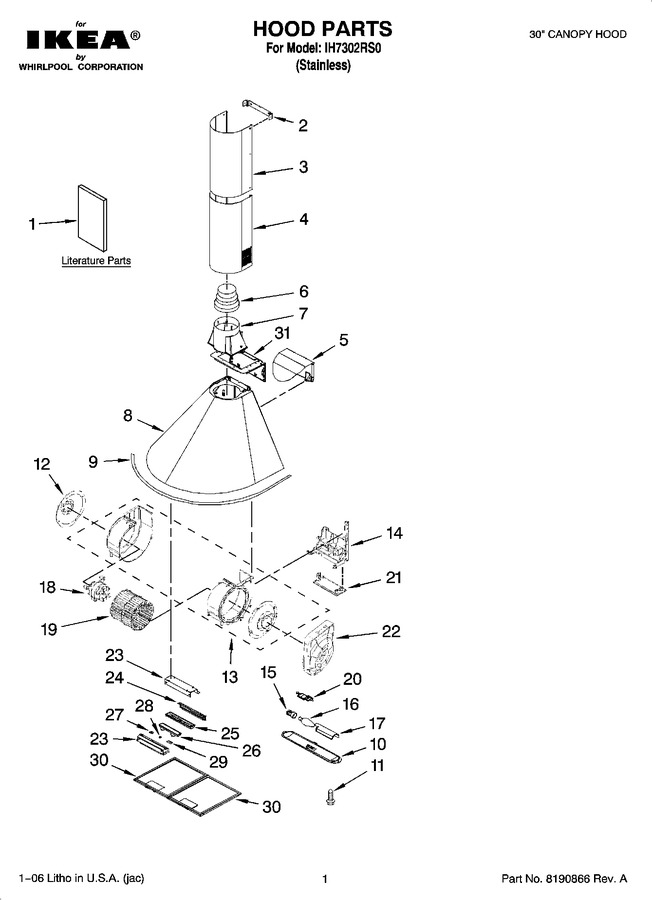

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9760267		Use & Care Guide		Appelez-nous	-
2	8190802		Bracket, Chimney		Appelez-nous	-
3	8190796		Chimney, Upper		Appelez-nous	-
4	8190798		Chimney, Lower		Appelez-nous	-
5	8191057		Bracket, Mounting (filter Connction)		Appelez-nous	-
6	8191128		Duct, Air Flange		Appelez-nous	-
7	8191126		Duct, Air		Appelez-nous	-
8	N/A		Canopy Not Serviced		Appelez-nous	-
9	8190819		Trim, Decorative		Appelez-nous	-
10	8190815		Cover, Light		Appelez-nous	-
11	8191127		Clip		Appelez-nous	-
12	8190816		Grill, Vent				$ 51.29
13	8190813		Housing, Fan Motor				$ 45.47
14	8190818		Box, Capacitor		Appelez-nous	-
15	8190797		Socket, Bulb				$ 76.25
16	WP8190806		Bulb, Light (40w)   (Replaces: 8190806)				$ 78.62
17	8190814		Reflector, Light		Appelez-nous	-
18	8190803		Motor, Fan				$ 431.54
19	8190800		Wheel, Blower				$ 64.42
20	8190809		Cover, Term Block		Appelez-nous	-
21	8190821		Cover, Base		Appelez-nous	-
22	4396848		Filter, Charcoal   (Replaces: 8190801)				$ 84.11
23	8190812		Box, Control		Appelez-nous	-
24	8190795		Cover, Switches		Appelez-nous	-
25	8190810		Panel, Control		Appelez-nous	-
26	8190817		Control, Elec		Appelez-nous	-
27	8190808		Switch, Light		Appelez-nous	-
28	8190820		Cover		Appelez-nous	-
29	8190807		Switch, Motor		Appelez-nous	-
30	WPW10383579		Filter, Grease   (Replaces: 8190804)				$ 128.12
31	N/A		Following Parts Not Illustrated		Appelez-nous	-
31	8191053		Hardware, Mounting		Appelez-nous	-
31	8190805		Hook, Mounting				$ 5.86
31	8190799		Capacitor				$ 47.40
31	8190846		Bracket, Mounting (pipe Support)		Appelez-nous	-
