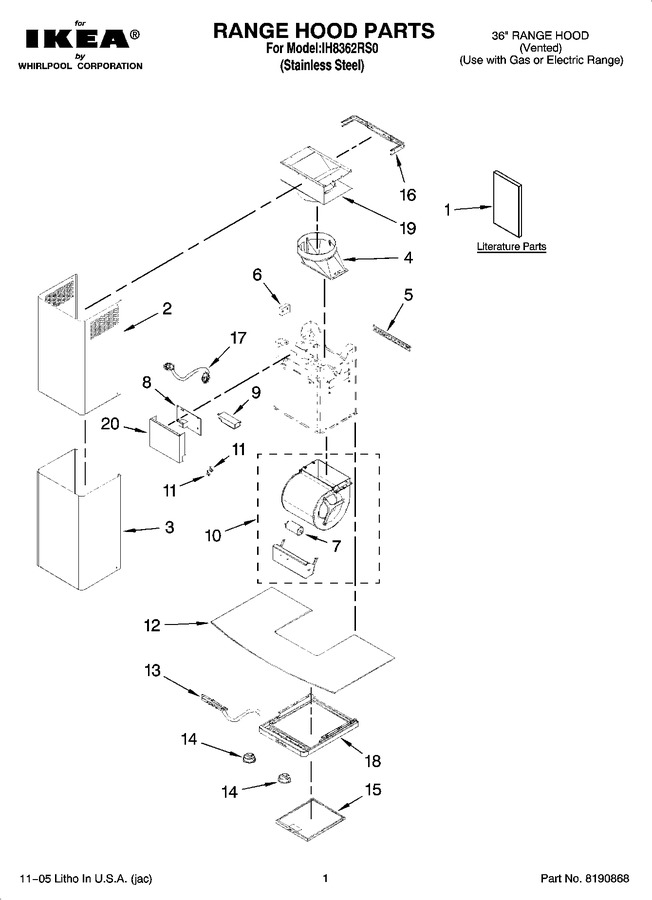

01 - Range Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9760268		Use & Care Guide		Appelez-nous	-
2	8190838		Chimney, Upper		Appelez-nous	-
3	8190837		Chimney, Lower		Appelez-nous	-
4	8190835		Duct, Air		Appelez-nous	-
5	8190842		Bracket, Hanger		Appelez-nous	-
6	8190841		Hook Pkg Hook/screw/plug				$ 10.10
7	8190831		Capacitor		Appelez-nous	-
8	8190832		Control, Elctronic				$ 302.19
9	8190830		Transformer		Appelez-nous	-
10	8190840		Motor, Complete		Appelez-nous	-
11	8190833		Bracket, Mounting				$ 7.46
12	8190839		Panel, Bottom		Appelez-nous	-
13	8190828		Panel, Control		Appelez-nous	-
14	WP8186678		Lamp   (Replaces: 8190834)				$ 73.21
15	WP8190836		Filter, Grease   (Replaces: 8190836)			Immediately	$ 120.09
16	8190843		Bracket, Mounting Chimney Fastening				$ 36.86
17	8191111		Harns-wire		Appelez-nous	-
18	8191059		Frame Assembly (cover-base)		Appelez-nous	-
19	8191062		Duct-air (diverter)		Appelez-nous	-
20	4396850		Filter, Charcoal With 4 Metal Wires				$ 203.55
20	8191060		Cover, Transformer		Appelez-nous	-
20	N/A		Following Parts Not Illustrated		Appelez-nous	-
20	8191056		Hardware, Mounting		Appelez-nous	-
	N/A		36`` Range Hood (vented) (use With Gas Or Electric Range)		Appelez-nous	-
