SELECT A DIAGRAM

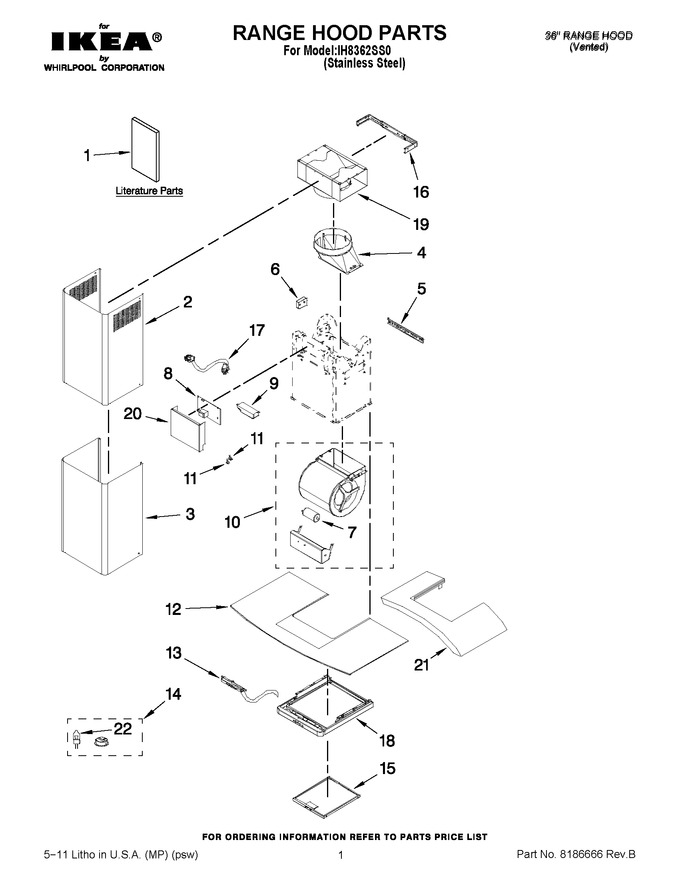

01 - Range Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10018010		Use & Care Guide		Appelez-nous	-
2	8186674		Chimney, Upper		Appelez-nous	-
3	8186673		Chimney, Lower		Appelez-nous	-
4	8186679		Duct, Air		Appelez-nous	-
5	8186681		Bracket, Hanger				$ 31.06
6	8190841		Hook Pkg Hook/screw/plug				$ 10.10
7	8186677		Capacitor				$ 235.77
8	8190832		Control, Elctronic				$ 302.19
9	W11186486		Transformer   (Replaces: 8186686)			Immediately	$ 229.15
10	8186676		Motor, Complete		Appelez-nous	-
11	8190833		Bracket, Mounting				$ 7.46
12	8186675		Panel, Bottom		Appelez-nous	-
13	8190828		Panel, Control		Appelez-nous	-
14	WP8186678		Bulb Assembly   (Replaces: 8186678)				$ 73.21
15	WP8190836		Filter, Grease   (Replaces: 8190836)			Immediately	$ 121.37
16	8190843		Bracket, Mounting Chimney Fastening				$ 36.86
17	8191111		Harns-wire		Appelez-nous	-
18	8191059		Frame Assembly (cover-base)		Appelez-nous	-
19	8186680		Duct-air (diverter)				$ 190.30
20	8191060		Cover, Transformer		Appelez-nous	-
21	N/P		Panel, Upper (not Serviced)		Appelez-nous	-
22	WPW10298151		Bulb, Halogen   (Replaces: W10298151)			Immediately	$ 29.28
NI	8186712		Hardware, Mounting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
