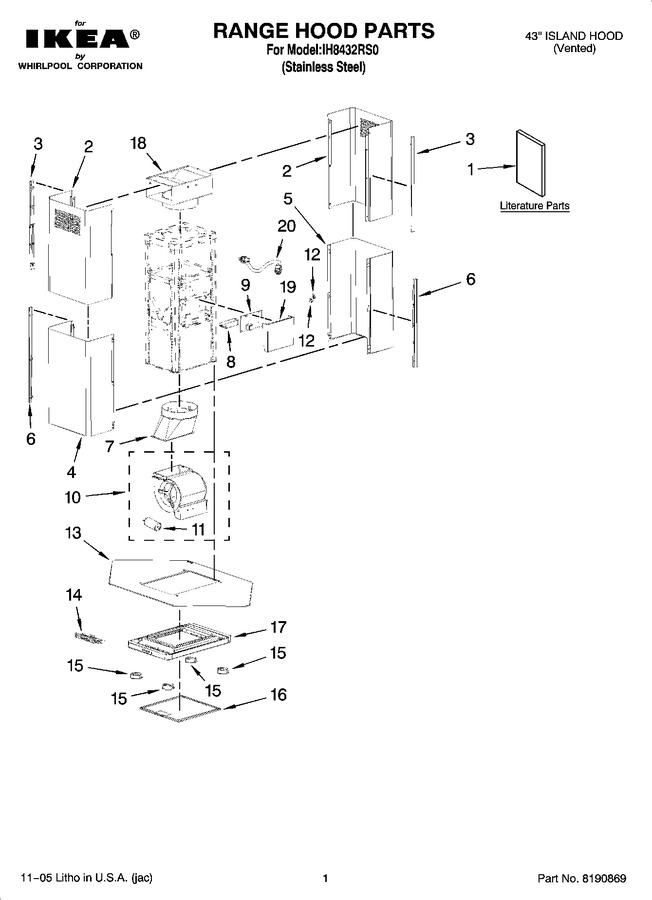

01 - Range Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9760269 | U & C Guide |
|
- | |||||
| 2 | 8190823 | Chimney, Upper (2) |
|
- | |||||
| 3 | 8190826 | Moulding, Lh (2) |
|
- | |||||
| 4 | 8190822 | Chimney, Lwr Front |
|
- | |||||
| 5 | 8190824 | Chimney, Lwr Back |
|
- | |||||
| 6 | 8190827 | Moulding, Rh (2) |
|
- | |||||
| 7 | 8190835 | Duct, Air |
|
- | |||||
| 8 | 8190830 | Transformer |
|
- | |||||
| 9 | 8190832 | Control, Elec |
|
$ 302.19 | |||||
| 10 | 8190829 | Motor, Complete |
|
$ 764.96 | |||||
| 11 | 8190831 | Capacitor |
|
- | |||||
| 12 | 8190833 | Bracket, Mounting |
|
$ 7.46 | |||||
| 13 | 8190825 | Panel, Bottom |
|
- | |||||
| 14 | 8190828 | Panel, Control |
|
- | |||||
| 15 | WP8186678 | Bulb/socket Assy (Replaces: 8190834) |
|
$ 73.21 | |||||
| 16 | WP8190836 | Filter, Grease (Replaces: 8190836) |
|
Immediately | $ 120.09 | ||||
| 17 | 8191061 | Frame Asm (cover-base) |
|
- | |||||
| 18 | 8191062 | Duct-air (diverter) |
|
- | |||||
| 19 | 8191060 | Cover, Transformer |
|
- | |||||
| 20 | N/A | Frame, Telescopic (not Serviced) |
|
- | |||||
| 20 | 8191112 | Harns, Wire |
|
- | |||||
| 20 | 4396850 | Filter, Charcoal With 4 Metal Wires |
|
$ 203.55 | |||||
| 20 | 8191055 | Hardware, Mounting |
|
- | |||||
| N/A | 43`` Island Hood (vented) |
|
- |
