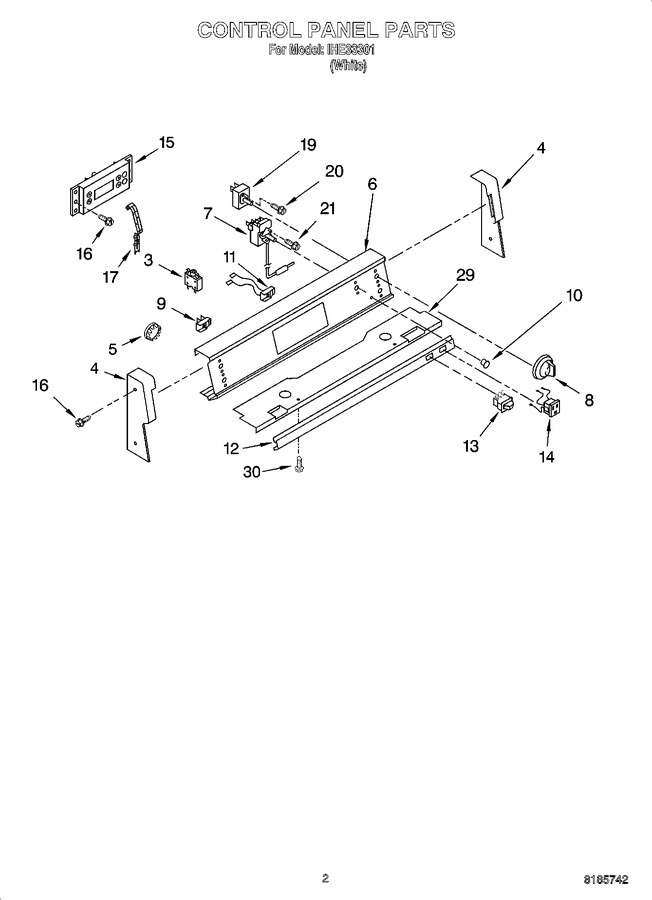

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3191073		Breaker, Circuit		Appelez-nous	-
4	9752423FW		End Cap (right)		Appelez-nous	-
4	9752422FW		End Cap (left)		Appelez-nous	-
5	9780578		Button, Plug (13 Mm)		Appelez-nous	-
6	9781866		Panel, Control		Appelez-nous	-
7	6700G0001		Thermostat   (Replaces: 9750401)			Immediately	$ 328.86
8	9750272FW		Knobs, Control (5)		Appelez-nous	-
9	313102		Light, Indicator (2)				$ 66.48
10	WP9750343		Lens, Light Ind. (3)   (Replaces: 9752589)			Immediately	$ 5.71
11	9780801		Light Module (oven)		Appelez-nous	-
12	9752442PW		Trim Strip		Appelez-nous	-
13	3191100FW		Switch, Oven Light		Appelez-nous	-
14	9751480FW		Outlet, Untimed		Appelez-nous	-
15	9781716		Oven Control (timer Assembly)		Appelez-nous	-
16	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
17	9781754		Bracket, Timer		Appelez-nous	-
19	WP9750641		Infinite Switch (2400w (2))   (Replaces: 9750641)			Immediately	$ 103.02
19	WP9750638		Infinite Switch (1400w (2))   (Replaces: 9750638)			Immediately	$ 113.89
20	WP3400882		Screw (8)   (Replaces: 3400816)			Immediately	$ 7.19
21	3400853		Screw, 8-32 X 3/16		Appelez-nous	-
29	9752439		Base, Console		Appelez-nous	-
30	WP3400832		Screw (3)   (Replaces: 3196168)			Immediately	$ 7.75

    View Diagram in Separate Window       Print Part List
